The Generator Foot Equipment Mount

Applications:

  • Elevators
  • Escalators
  • Air Conditioning
  • Compressors
  • Generator Sets
  • Cooling Towers
  • Business Machines
  • Compartment Isolation
  • Fans
  • Grinders
  • Injection Molders
  • Panel Boards
  • Pipe Supports
  • Printing Machinery
  • Processing Equipment
  • pumps
  • rigging
  • shop machines
  • transformers


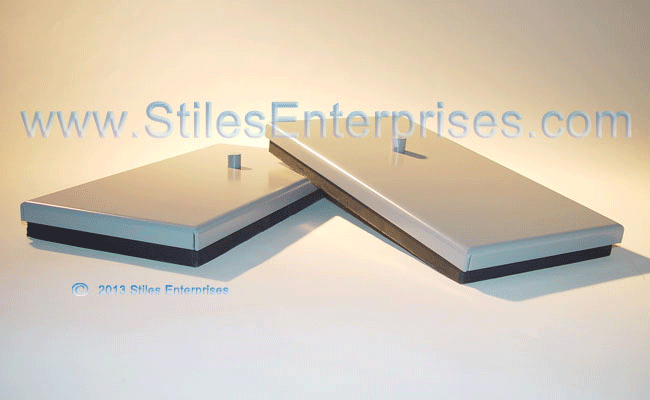

Stiles Generator Foot Equipment MountThe Generator Foot™

The Generator Foot™ is a heavy duty anti-vibration mount originally designed by a large Caterpillar® generator set packager for isolating generator sets, compressors, and pump assemblies.



When given the proper load per mount, Stiles's Generator Foot™ can reduce vibration by 80% or more.  Priced approximately 1/2 to 1/3 of conventional spring mounts, most orders are shipped from stock.  These mounts are currently used under Caterpillar®, Cummins®, Detroit®, and other brands of Generator Sets.


Key to the Generator Foot™; is Stiles's one inch thick vibration damping Vib Pads™.  Fitted over each pad is a heavy gage metal adaptor plate with a welded on 1/2 inch (13mm) x 1/2 inch (13mm) high non-threaded stud.  Installation consists of lifting the Generator Set and locating the Generator Foot™ with the stud locking into standard bolting holes on the frame.

The CA-02435 mounts have a .41 inch (10.4mm) bolting hole replacing the stud.


Generator Foot Selection Chart

Warranties
 The Generator Foot™ Originally Designed By A Caterpillar® Dealer To Isolate Generator Sets
Literature
1 Inch Thick Pads • 1/2 Inch Thick Pads • 3/8 Inch Thick Pads • Generator Foot™

Picture A

CA-02438-AJC

  • Outside Dim: 3-5/16 x 3-5/16
  • Vib Pad: 3.15 x 3.15 x 1" Thick
  • 80mm x 80mm x 25mm Thick
  • Adapter Plate with 1/2 " x 1/2" Non Threaded Stud
  • 25A Black Neoprene
  • Wt. .8 Lbs (.4 Kg)
 CA-02438-AJC Generator Foot™

Picture D

CA-02435-AJC

  • Outside Dim: 3-5/16 x 3-5/16
  • Vib Pad: 3.15 x 3.15 x 1" Thick
  • 80mm x 80mm x 25mm Thick
  • Adapter Plate with .38" Centered Hole
  • 25A Black Neoprene
  • Wt. .8 Lbs (.4 Kg)
 CA-02435-AJC Generator Foot

Picture B

CA-02438-AJD

  • Outside Dim: 3-5/16 x 3-5/16
  • Vib Pad: 3.15 x 3.15 x 1" Thick
  • 80mm x 80mm x 25mm Thick
  • Adapter Plate with 1/2 " x 1/2" Non Threaded Stud
  • 40A Black Neoprene
  • Wt. .8 Lbs (.4 Kg)
 CA-02438-AJD Generator Foot™

Picture E

CA-02435-AJD

  • Outside Dim: 3-5/16 x 3-5/16
  • Vib Pad: 3.15 x 3.15 x 1" Thick
  • 80mm x 80mm x 25mm Thick
  • Adapter Plate with .38" Centered Hole
  • 40A Black Neoprene
  • Wt. .8 Lbs (.4 Kg)
 CA-02435-AJD Generator Foot™

Picture G

CA-02441-AJC

  • Outside Dim: 3-3/8 x 9-3/4
  • (2) Vib Pads: 3.15 x 3.15 x 1" Thick
  • 80mm x 240mm x 25mm Thick
  • Adaptor Plate with 1/2 " x 1/2" Non Threaded Stud
  • 25A Black Neoprene
  • Wt. 2.3 Lbs (1.0 Kg)
 CA-02441-AJC Generator Foot™

Picture H

CA-02441-AJD

  • Outside Dim: 3-3/8 x 9-3/4
  • (2) Vib Pads: 3.15 x 3.15 x 1" Thick
  • 80mm x 240mm x 25mm Thick
  • Adaptor Plate with 1/2 " x 1/2" Non Threaded Stud
  • 40A Black Neoprene
  • Wt. 2.3 Lbs (1.0 Kg)
 CA-02441-AJD Generator Foot

Picture J

CA-02444-AJC

  • Outside Dim: 3-3/8 x 9-3/4
  • (3) Vib Pads: 3.15 x 3.15 x 1" Thick
  • 80mm x 240mm x 25mm Thick
  • Adaptor Plate with 1/2 " x 1/2" Non Threaded Stud
  • 25A Black Neoprene
  • Wt. 2.6 Lbs (1.2 Kg)
 CA-02444-AJC Generator Foot

Picture K

CA-02444-AJD

  • Outside Dim: 3-3/8 x 9-3/4
  • (3) Vib Pads: 3.15 x 3.15 x 1" Thick
  • 80mm x 240mm x 25mm Thick
  • Adaptor Plate with 1/2 " x 1/2" Non Threaded Stud
  • 40A Black Neoprene
  • Wt. 2.6 Lbs (1.2 Kg)
 CA-02444-AJD Generator Foot

Picture I

CA-02441-AIW

  • Outside Dim: 3-3/8 x 9-3/4
  • (2) Vib Pads: 3.15 x 3.15 x 1" Thick
  • 80mm x 240mm x 25mm Thick
  • Adaptor Plate with 1/2 " x 1/2" Non Threaded Stud
  • 55A Black Neoprene
  • Wt. 2.3 Lbs (1.0 Kg)
 CA-02441-AIW Generator Foot

Picture M

CA-02447-AJF

  • Outside Dim: 6-1/8 x 6-1/8
  • Vib Pad: 6" x 6" x 1" Thick
  • 152mm x 152mm x 25mm Thick
  • Adapter Plate with 1/2 " x 1/2" Non Threaded Stud Centered
  • 55A Black Natural Rubber
  • Wt. 2.0 Lbs (1.0 Kg)
 CA-02447-AJF Generator Foot

Picture L

CA-02444-AIW

  • Outside Dim: 3-3/8 x 9-3/4
  • (3) Vib Pads:3.15 x 3.15 x 1" Thick
  • 80mm x 240mm x 25mm Thick
  • 3 Pads Under Adaptor Plate with 1/2 " x 1/2" Non Threaded Stud
  • 55A Black Neoprene
  • Wt. 2.6 Lbs (1.2 Kg)
 CA-02444-AIW Generator Foot

Picture N

CA-02450-AJF

  • Outside Dim: 6-1/8 x 10-3/16
  • Vib Pad: 6" x 10" x 1" Thick
  • 152mm x 254mm x 25mm Thick
  • Adapter Plate with 1/2 " x 1/2" Non Threaded Stud Off Center
  • 55A Black Natural Rubber
  • Wt. 3.6 Lbs (1.7 Kg)
 CA-02450-AJF Generator Foot

Picture N

CA-02450-AIW

  • Outside Dim: 6-1/8 x 10-3/16
  • Vib Pad: 6" x 10" x 1" Thick
  • 152mm x 254mm x 25mm Thick
  • Adapter Plate with 1/2 " x 1/2" Non Threaded Stud Off Center
  • 55A Black Neoprene
  • Wt.4.5 Lbs (2.0 Kg)
  • Call: Non Stock, Special Order
 CA-02450-AIW

Picture O

CA-02453-AJF

  • Outside Dim: 6-1/4 x 12-1/4
  • Vib Pad: 6" x 12" x 1" Thick
  • 152mm x 305mm x 25mm Thick
  • Adapter Plate with 1/2 " x 1/2" Non Threaded Stud Off Center
  • 55A Black Natural Rubber
  • Wt. 5.3 Lbs ( 2.4 Kg)
 CA-02453-AJF Generator Foot

Picture O

CA-02453-AIW

  • Outside Dim: 6-1/4 x 12-1/4
  • Vib Pad Dim: 6" x 12" x 1" Thick
  • 152mm x 305mm x 25mm Thick
  • Adapter Plate with 1/2 " x 1/2" Non Threaded Stud Off Center
  • 55A Black Neoprene
  • Wt. 6.0 Lbs (2.7 Kg)
  • Call: Non Stock, Special Order
 CA-02453-AIW Generator Foot
