Capper Change Parts To Fit:Other Capper replacement Parts To Fit Resina® Cappers: |
4 Inch Diameter Capper Torque Wheels
/ Quill Rubbers

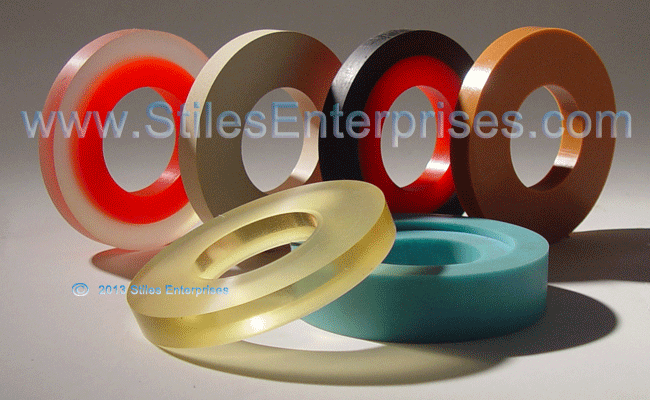

Stiles maintains a large stock of 4 Inch capper torque wheels in varied materials and colors. For years we have worked with cap manufacturers, capper OEMs, and packagers formulating materials to match standard and problem caps.
It is a common practice for suppliers of torque rings to push one material such as urethane, on packagers as the answer to all of their cap tightening problems. Higher durometer rings usually translate into longer wearing rings, but can result in less grab and burning of caps. Softer rings wear more quickly, but are more gentle on the caps. While urethane rings are a good general purpose solution, we also offer our rings made from other non urethane materials in varied hardnesses in order to tailor the rings closer to specific applications. Presence of food and petroleum oils, high gloss or easily marked cosmetic caps, metallic coated caps prone to cracking, and linerless caps which require higher torque are situations where other materials should be considered.
Call us if you are having problems such as scuffing or burning of caps, insufficient torque due to wheel glazing, presence of food or petroleum oil, linerless caps, cracking of metallic finished caps, trigger caps or just want to see if there is a longer wearing ring.
Our shop can provide insets, bevels, custom sizes, and contours to match cap profiles.
We also make the 4 inch rings in thicknesses other than the 1/2 inch standard.
Common Replacement Quill rubbers |
||
Stiles Number |
Number To Be Replaced |
Notes |
AB-00001-AII |
PO645 |
|
AB-00001-AEP |
PO655 |
|
AB-00001-AEQ |
PO670 |
Replacement color is clear, not melon |
| AB-00001-BME | 028-045W | |
| AB-00001-ADB | 028-055W | |
| AB-00001-ANK | 028-070W | |

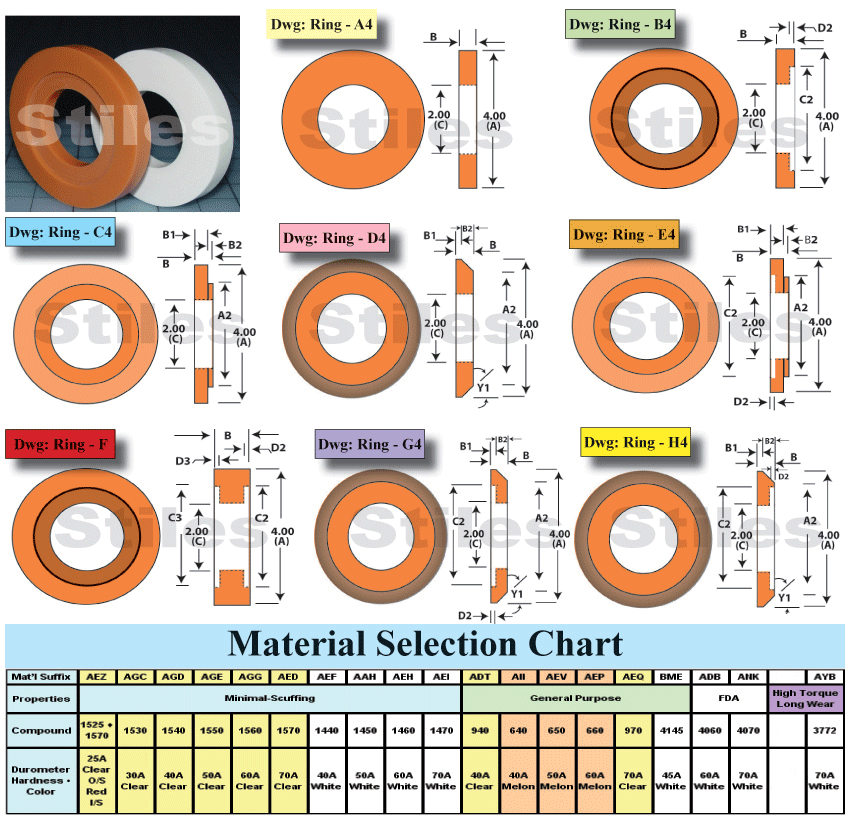

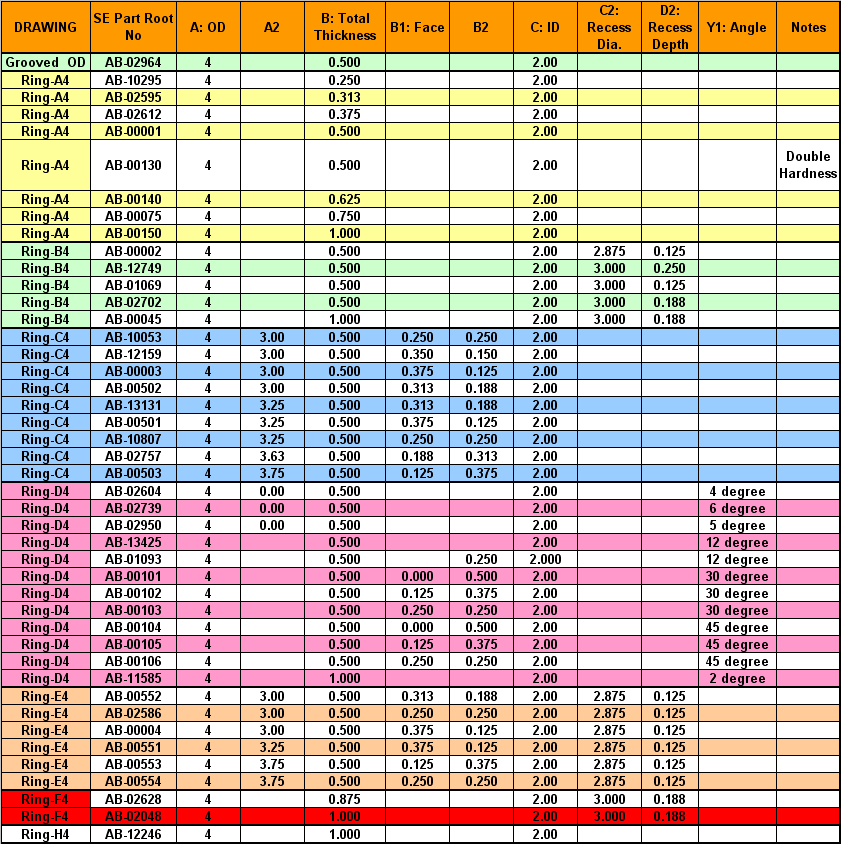

Specify Quill Rubber Wheel Number As the SE Part Root No listed below and The Material Suffix from the Material Selection Chart above.
Example: AB-00001-AEP
