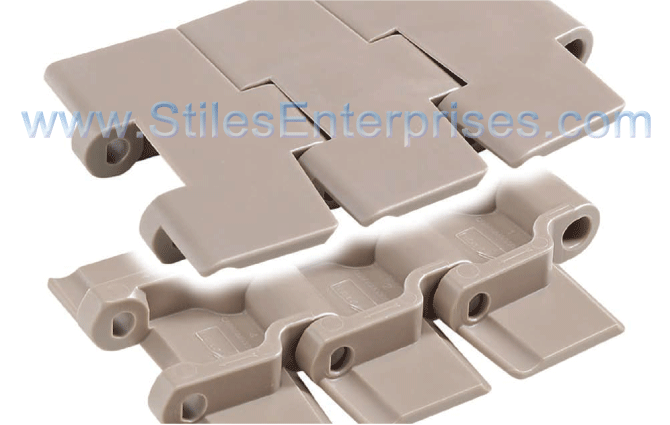

880M Radius Slat Top Chain

Slat Top 880M chain is a special standard duty radius and straight running plastic chain without any hold down device. Magnetic corner tracks interact with the magnetic steel pin in the chain. Top plate thickness is 4.00 mm. Applications include industries in which easy removal of chain from track is critical for cleanability. Use 880M series for side transfer with 820 series straight chains.

Applications:

Industries in which easy removal of chain from track is critical for cleanability

Pitch:

1.5" (38.1MM)

Plate Thickness:

4.0MM

Design:

880 hinge design = identical sprocket for 828, 879, 880, 890 series chains For side transfer with 820 and 828 series straight running chains

Operating:

Beveled standard duty radius and straight running plastic chain

Features:

Radius running plastic magnetic chain, Held down in the curve by a magnetic corner track, Easy removal from the corner track for cleaning or maintenance

Pin Material:

Stainless Steel
The Weight Specification Is Indicative
Other Materials On Request

Standard Packaging:

3.048 M =10 ft
