 Side Chains And  Chain Bottle Gripper Blocks To Fit Resina® Cappers

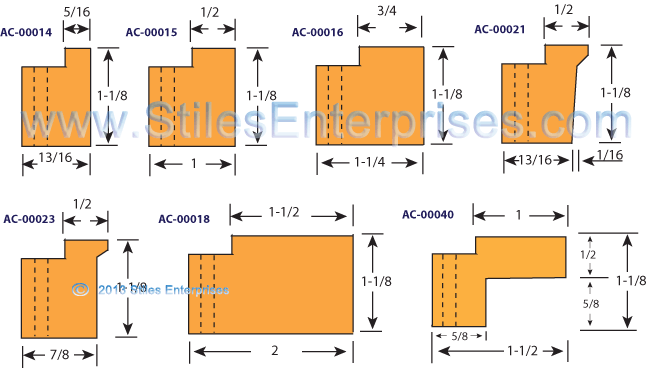

Capper Chain Block Drwg

Capper Change Parts To Fit:

  • Resina® Cappers
  • Kaps-All® Cappers
  • White Cap® Cappers
  • Pack West® Cappers
  • IMA® Cappers, MAR® Cappers
  • Sure Cap® Cappers
  • National Instrument® Cappers
  • Filamatic® Cappers
  • N.E.M® Cappers
  • Pneumatic Scale® Cappers
  • ELF® Cappers
  • Inline® Cappers
  • Newman® Cappers
  • Kinsley® Cappers
  • Kalish® Cappers
  • CAPEM® Cappers
  • Other Cappers

Other Capper Replacement Parts To Fit Resina® Cappers:

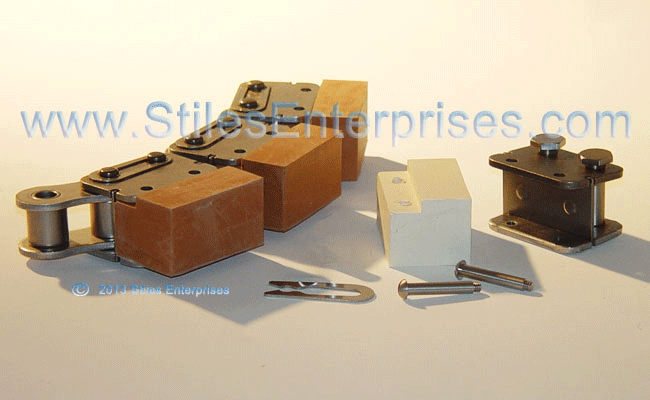

Chain Rubbers To Fit Resina® Straight Line Cappers

Chain blocks to fit Resina® Cappers were among the first items supplied by Stiles to packagers in the 1950's. Since then we have accumulated molds, tooling, and varied fixtures to produce many standard and custom shapes per customer requirements. Currently we stock approximately ten standard shapes of chain rubbers. We stock our Resina® chain blocks in tan 40A and 50A natural gum. Other compounds are available upon request.

Chains are available in Stainless Steel and Cold Rolled Steel.



We Stock More Capper Chuck Inserts And Torque Wheels Than Anyone

Torque Wheels • Chuck Inserts • Capper Belts • Bottle Gripper Rubbers • Table Top Chain • Rubbers To Fit Resina® Side Chain

AC-00014-AKF

40A Tan Natural Rubber

AC-00014-ACT

55A Tan Natural Rubber

AC-00014 Chain Rubber To Fit Resina® Side Chain

AC-00014-AGR

40A White Oil Resistant

AC-00014-AEW

55A White Oil Resistant

AC-0014 White Chain Rubber To Fit Resina® Side Chain

AC-00015-AKF

40A Tan Natural Rubber

AC-00015-ACT

55A Tan Natural Rubber

AC-00015 Chain Rubber To Fit Resina® Side Chain

AC-00015-AGR

40A White Oil Resistant

AC-00015-AEW

55A White Oil Resistant

AC-00015 White Chain Rubber To Fit Resina® Side Chain

AC-00016-AKF

40A Tan Natural Rubber

AC-00016-ACT

55A Tan Natural Rubber

AC-00016 Chain Rubber To Fit Resina® Side Chain

AC-00016-AGR

40A White Oil Resistant

AC-00016-AEW

55A White Oil Resistant

AC-00016 White Chain Rubber To Fit Resina® Side Chain

AC-00018-AKF

40A Tan Natural Rubber

AC-00018-ACT

55A Tan Natural Rubber

AC-00018 Chain Rubber To Fit Resina® Side Chain

AC-00018-AGR

40A White Oil Resistant

AC-00015-AEW

55A White Oil Resistant

AC-00018 White Chain Rubber To Fit Resina® Side Chain

AC-00021-AKF

40A Tan Natural Rubber

AC-00021-ACT

55A Tan Natural Rubber

AC-00021 Chain Rubber To Fit Resina® Side Chain

AC-00021-AGR

40A White Oil Resistant

AC00021-AEW

40A White Oil Resistant

AC-00021 White Chain Rubber To Fit Resina® Side Chain

AC-00023-AKF

40A Tan Natural Rubber

AC00023-ACT

55A Tan Natural Rubber

AC-00023 Chain Rubber To Fit Resina® Side Chain

AC-00040-AKF

40A Tan Natural Rubber

AC00040-ACT

55A Tan Natural Rubber

AC-00040 Chain Rubber To Fit Resina® Side Chain

AC-01700-AAS
Chain / Mounting
& Backup Plates

Stainless Steel Chain

Screws Sold Separately

AC-01700--AAT

Carbon Steel

AC-01700-AAS Stainless Chain And Backup Plates To Fit Resina® Cappers

AC-02023-AAS

    Stainless Steel Screws



AC-02023-AAS Stainless Steel Screws For Capper Side Chains To Fit Resina® Cappers

AC-02495-AAS

Stainless Steel Master Link



AC-02495-AAS Stainless Master Link For Resina® Capper Side Chains
