Blades for form fill and seal vertical baggers • pouch equipment • shrink wrappers • overwrappers • rollstock • vacuum packaging • tape sealing • flow wrapping including zig zag, smooth and diagonal cut



Case Taper Blades

Parts To Fit:

  • 3M® Case Tapers
  • Aetna® Case Tapers
  • Belcor® Case Tapers
  • Bemis® Case Tapers
  • Best Pack® Case Tapers
  • Decca® Case Tapers
  • Durable® Case Tapers
  • EZ-Tape® Case Tapers
  • Intertape® Case Tapers
  • Little David® / Loveshaw® Case Tapers
  • M&H® Case Tapers
  • MGL® Case Tapers
  • Marq® Case Tapers
  • Mantaray® Case Tapers
  • S&R® Case Tapers
  • Tapeler®
  • Other Case Tapers

Related Products

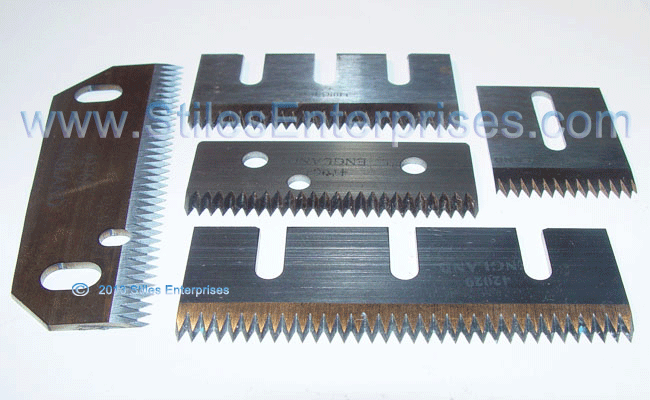

Case Taper Blades


Blades purchased from Stiles are of the highest quality manufactured by companies with over 100 years of experience. We've heard complaints about cheaper blades or mismatched blades performing poorly in industry. Every aspect of the blades we sell assures us that you will be pleased with the performance of our product. State of the art bending, cutting and grinding equipment produce straight and circular blades with scalloped, serrated, perfed, beveled and toothed edges to match your applications. Our standard case taper blades with the BQE number suffix are through hardened which means that the whole blade is hardened, not just the cutting edge.

Please consider Stiles for all of your blade requirements for all of your packaging equipment.

Below is a sampling of case taper blades which we have supplied shown on a one inch grid. Because we have seen different reference numbers on the same blade, refer to the pictures and dimentions when choosing blades. When possible please provide cross reference numbers when purchasing blades.

Case Taper Blades to fit: 3M® • Aetna® • Belcor® • Bemis® • Best Pack® • Decca® • Durable® • EZ-Tape® • Intertape® • Little David® / Loveshaw® • M&H® • MGL® • Marq® • Mantaray® • S&R® • Tapeler®



Warranties Case Taper Blades Literature
Call Stiles For Replacement Case Taper BeltsCase Taper BladesCase Taper RollersVacuum Cups
Stiles Part No Description Picture Of Blade On 1 Inch Grid
DD-13330-BQE

2.45 inch X.976 x .062 Thick Blade
Carbon Steel

Replaces: Little David® #PSC-11B-4

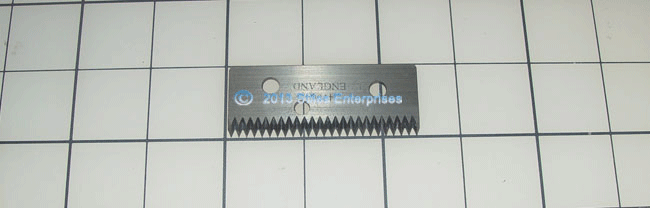

 DD-13330-BQE Case Taper Blade Replaces: Little David® PSC-114-4

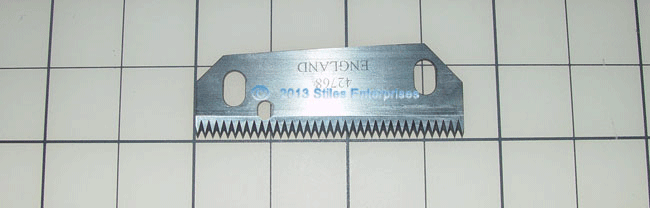

DD-13331-BQE

3.5 inch X 1.16 x .062 Thick Blade
Carbon Steel

Replaces: Little David® #PS4117A-4

DD-13331-BQE  Case Taper Blade Replaces: Little David® PS4117A-4

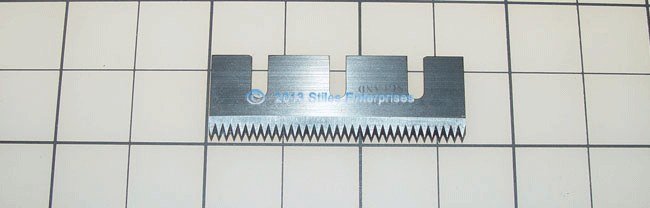

DD-13332-BQE

3.37 inch X 1.16 x .062 Thick Blade
Carbon Steel

Replaces: 3M® #78-8028-7899-7

DD-13332-BQE Case  Case Taper Blade Replaces: 3M® #78-8028-7899-7
DD-13333-BQE

2.55 inch X 1.18 x .059 Thick Blade
Carbon Steel

Replaces: 3M® #78-8017-9173-8

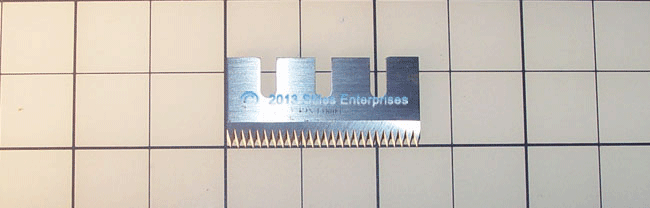

DD-13333-BQE Case Taper Blade Replaces: 3M® #78-8017-9173-8

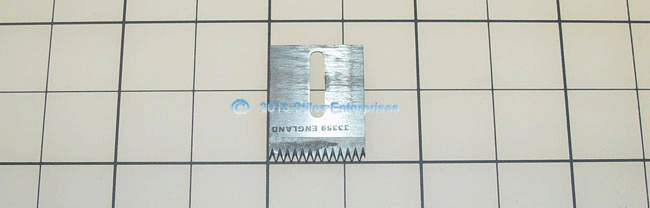

DD-13334-BQE

1.25 inch X 1.64 x .060 Thick Blade
Carbon Steel

Replaces: 3M® #70-8601-0016-6

DD-13334-BQE  Case Taper Blade Replaces: 3M® #70-8601-0016-6

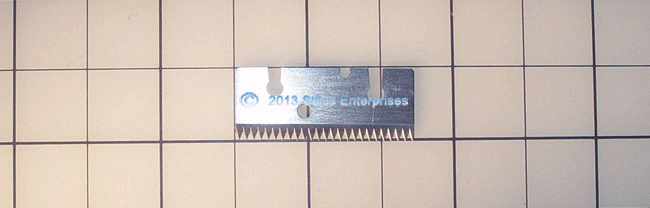

DD-13947-BQE

2.45 inch X .976 x .035 Thick Blade
Carbon Steel

Replaces: 3M® #PSC11B60-4

DD-13947-BQE Case Taper Blade Replaces: 3M® #PSC11B60-4

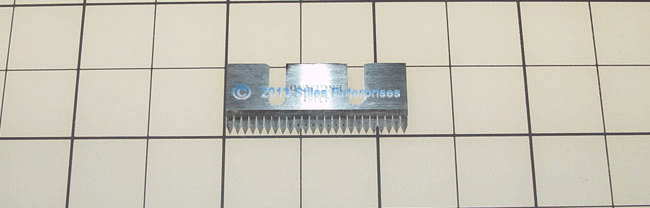

DD-13335-BQE

2.37 inch x 1.00 High x .060 Thick Blade
Carbon Steel

Replaces: Marq® • Decca® • Belcor®

#A101505

DD-13335-BQE Marq Belcor Decca Case Taper Blade

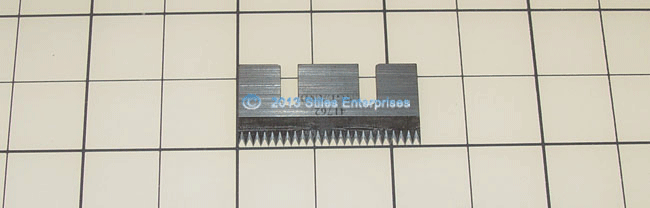

DD-13336-BQE

2.37 inch x 1.16 High x .060 Thick Blade
Carbon Steel

Replaces: Decca® • Belcor® #06-029

DD-13336-BQE  Case Taper Blade Replaces: Decca® • Belcor® #06-029
DD-13337-CGZ

2.07 inch X .56 x .020 Thick Blade
Spring Steel

Replaces: Durable® #743

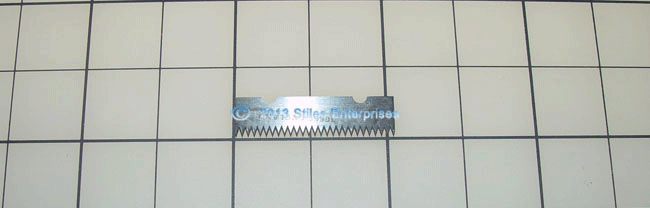

DD-13337-BQE Case Taper Blade Replaces: Durable® #743
DD-13338-BQG

2.60 inch X 1.25 x 1.25 High x .020 Thick Blade
Stainless Steel

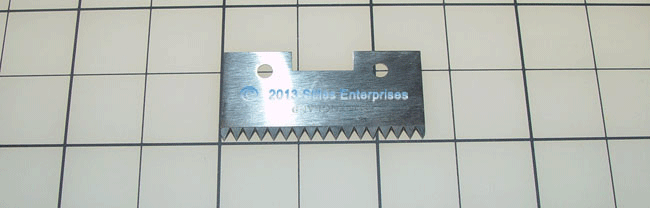

DD-13338-BQE Tape Knife

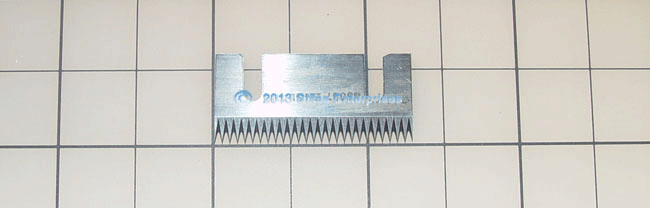

DD-14159-BQE

2.56 Inch x 1.18 High x .059 Thick
Carbon Steel

Replaces: Bestpack® #10122

DD-14159-BQE Case Taper Blade Replaces: Bestpack® #10122

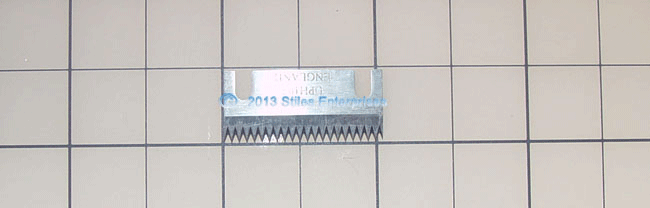

DD-14238-BQG

2.059 Inch x .99 High x .062 Thick
Stainless Steel

Replaces: Intertape® #UPH193

DD-14238-BQG Case Taper Blade Replaces: Intertape® #UPH193


For Additional Information And Delivery Information Call Our Office
