AK Robbins Pickle Strip Cutter Parts

Parts To Fit AK Robbins Pickle Slicer:

  • Pickle Feed Wheels - Standard And Custom
  • Blades
  • Belts
  • Blade Holders

Related Links:


Rollers, Blades And Parts For AK Robins® Pickle Strip Cutter


In 2009 Stiles Enterprises acquired from Kenco Food Machinery®, the product line of replacement parts for the A.K. Robins® Pickle Strip Cutter. All parts offered by Stiles are produced to original equipment specifications.

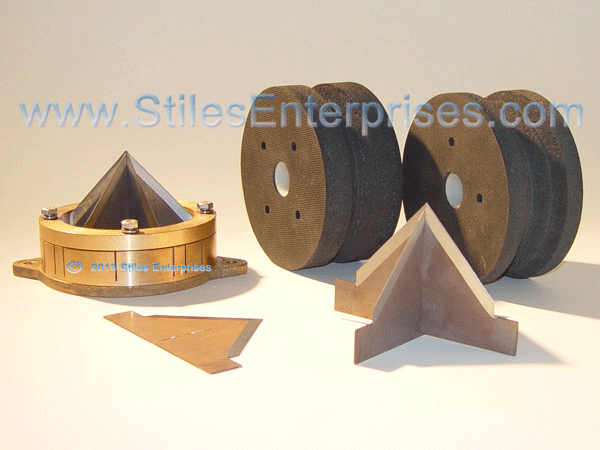

Included in the product line are rubber pickle feed rollers, pickle strip cutter blades, and the universal knife head assembly.

In addition to the standard 1 inch and 1-1/2 inch grooves, infeed wheels can be manufactured to customer specifications.

When inserting blades, follow this procedure.

  • Blades are taped together for your safety. The tape is anywhere from .001 ~ .005 inches in thickness. Remove the tape from the blade tabs. With a sharpening stone, make sure that the tape is totally removed. We took blades from stock and removed what appeared to be all of the tape. The blade would not fit into the hole until we took a stone to the blade tabs and saw that additional tape was removed.


  • When fitting bent blades into the slots, it is important to shift the blade if it initially binds or does not fit. Forcing a blade that is not positioned properly will cause burring of the inside of the slot, blocking further use of that slot.


  • The blade assembly of multiple blades may require additional position adjustment in order to fit into place. The slots in blade assemblies are checked when made. If a slot does not accept another blade, lightly file the slot using a .051 file.



    It is suggested that the mechanic working with the blades have a .051 file, and have a flat sharpening stone on hand. It should be noted that over time as holders are used, slots will wear making blades easier to install.

    Remember that these blades are extremely sharp and protective gloves should be worn by anyone handling these blades.


  • YY-11405-BCG AK Robbins Pickle Blades
    YY-10754-BCG 4th Cut AK Robbins Pickle Blades
    YY-11406-AAT_5th Cut AK Robbins Pickle Blades
    YY-11407-AAT_6th Cut AK Robbins Pickle Blades
    YY-11408-BCG_8th Cut AK Robbins Pickle Blades
    YY-11405-BCG 1/2 Cut
    YY-10754-BCG 4th Cut Set
    YY-11406-AAT 5th Cut Set
    YY-11407-AAT 6th Cut Set
    YY-11408-AAT 8th Cut Set
    (1) Blade (2) Blades Per Set (3) Blades Per Set (3) Blades Per Set (6) Blades Per Set
    Kenco Part # 10010 Kenco Part # 10011 Kenco Part # 10012 Kenco Part # 10013 Kenco Part # 10014


    warranties
    Contact Stiles For Case Taper Blades And Belts
    Download Literature
    Wrap Belts • Pressure Rollers • Feed Rollers • Glue Rollers • Vacuum Cups • Label Roll Pads • Hold Down Belts



    YY-03146-APH

    • AK Robins Pickle Strip Cutter Wheel With 1 Inch Wide Groove
    • Kenco Part # 1004
    AK Robbins Pickle Strip Cutter Wheel



    YY-03147-APH

    • AK Robins Pickle Strip Cutter Wheel With 1-1/2 Inch Wide Groove
    • Kenco Part # 1005
    AK Robbins  Pickle Strip Cutter Wheel



    YY-11405-BCG

    • 1/2 Cut Pickle (1) Blade
    • Kenco Part # 10010
    1/2 cut AK Robbins Pickle Blades



    YY-10754-BCG

    • 4th Cut Pickle (2) Blade Set
    • Kenco Part # 10011
    AK Robbins Pickle Blades 4 cut



    YY-11406-AAT

    • 5th Cut Pickle (3) Blade Set
    • Kenco Part # 10012
    YY-11406-AAT 5th cut AK Robbins Pickle Blades



    YY-11408-AAT

    • 8th Cut Pickle (6) Blade Set
    • Kenco Part # 10014
    YY-11408-AAT 8th cut AK Robbins Pickle Blades



    YY-11411-BCI

    • Universal Knife Head Retaining Ring
    • Kenco Part # 1003
    AK Robbins Pickle Slicer Knife Head Retaining Ring



    YY-11409-BCI

    • Universal Knife Head Assembly
    • Includes Kenco Part # 1002 And # 1003
    AK Robbins Pickle Slicer Universal Knife Head Assembly



    YY-11410-BCI

    • Universal Knife Head Part
    • Kenco Part # 1002
    AK Robbins Pickle Slicer Knife Head
