Capper Side Belts


Capper Side Bottle Gripper Belts


    Advantages Of Stiles Belts:

  • Decades Spent Getting It Right - We're Familiar With Capping Applications
  • Large Inventory Of Stocked Sleeves In Varied Materials
  • Machining Capabilities For Custom Profiles
  • One Source For Capper Chuck Inserts ♦ Capper Belts ♦ Bottle Gripper Rubbers ♦ Bottle Spacer Wheels
  • One Proven Source For Other Packaging Machinery Replacement Parts, Conveyor Chain And Belts

Capper Change Parts To Fit:

  • Resina® Cappers
  • Kaps-All® Cappers
  • White Cap® Cappers
  • Pack West® Cappers
  • IMA® Cappers, MAR® Cappers
  • Sure Cap® Cappers
  • National Instrument® Cappers
  • Filamatic® Cappers
  • N.E.M® Cappers
  • Pneumatic Scale® Cappers
  • ELF® Cappers
  • Inline® Cappers
  • Newman® Cappers
  • Kinsley® Cappers
  • Kalish® Cappers
  • CAPEM® Cappers
  • Other Cappers

Capper Links


Stiles maintains a large inventory of seamless capper side gripper belt. In addition to finished sizes off the shelf, we stock sleeve widths that can be cut to required widths. Our stock includes belts with 3/8 inch thick and other thickness covers. Most belts are available with red or white cover materials. For a more gentle grip on fragile bottles, ask about our softer AOF gray covering.

When wear from pulley flanges is present it is common for Stiles to inset the cover padding from the base belt edges. To increase belt life and reduce base belt particulation, we also offer seamless covers on urethane belts. Belt surfaces can be tapered or profiled to match bottle contours.

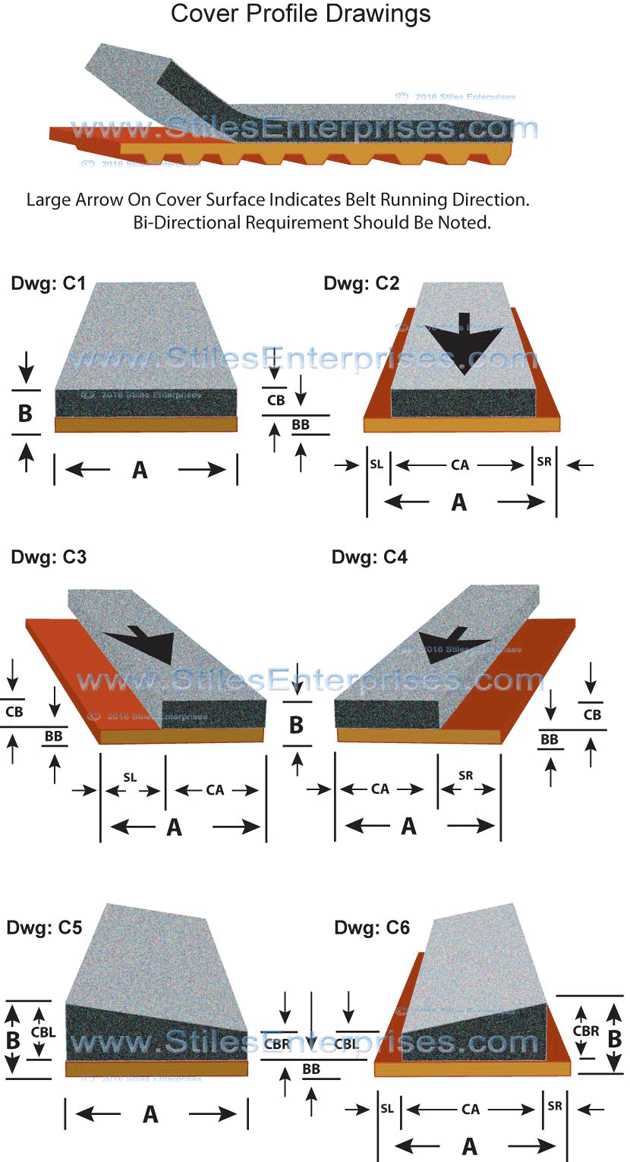

Cover Profile Drawings

Below is a small sampling of some of the types of capper belts that we provide. Use Part Numbers as a general reference only. Your belt may look the same, but dimensions and materials may differ slightly from your application.





We Stock More Capper Chuck Inserts And Torque Wheels Than Anyone

Torque Wheels • Chuck Inserts • Capper Belts • Bottle Gripper Rubbers • Table Top Chain • Rubbers To Fit Resina® Side Chain

Drawing C1

Seamless White Cover On Timing Belt

  • Straight Line Capper Belt
Capper Side Belt MD-02843-AJA

Drawing C1

Seamless Red Cover On Timing Belt

  • Straight Line Capper Belt
Capper Side Belt MD-10044-AKY

Drawing C2

Inset Edges - Seamless White Cover On Timing Belt

  • Straight Line Capper Belt
Capper Side Belt MD-10114-AJA

Drawing C5

Seamless Red Cover On Timing Belt: Custom Ground Taper

  • Straight Line Capper Belt
Capper Side Belt With Custom Taper  MD-10262-AKY

Drawing C6

Inset Edges - Seamless White Cover On Timing Belt: Custom Ground Taper

  • Straight Line Capper Belt
MD-10711 Capper Side Belt With Custom Taper

Drawing C1

Seamless Gray Cover On Timing Belt

  • Straight Line Capper Belt
  • AOF Soft 30 A Durometer Gray Material For Extra Deflection
Capper Side Belt With Soft Gray Cover MD-10711-AJA

Drawing C1

Seamless Red Cover On Flat Belt With V-Guide

  • Snap-On Capper Belt
MD-10712-AIZ

Custom Specification Grind

Seamless Red Cover On Timing Belt: Custom Profile To Match Resina® Chain Rubber

  • For Straight Line Capper
Capper Side Belt With Custom Ground Cover Profile MD-10874-AKY

Custom Specification Grind

Seamless Tan Cover On Timing Belt: Custom Profile

MD-14209 Custom Profile  Tan Covered Timing Belt
