We Work With The Best Manufactures To Give You The Best Solutions

Rough Top Surface provides high grip used in decline, horizontal, and incline conveying.

Industries Include:
Distribution centers • General applications • Materials handling • Parcel sorting • Packaging applications.

The amount of grip is dependent on the grip texture surface, the belt surface material, and the product being transported. Higher grip may mean faster wear on belts.
Warranties Flat Rough Top Conveyor Belting Literature
Call Stiles For Case Taper Blades • Case Taper Belts
  Thick Pulley diameter (min) Tensile force for 1% elongation (k1% static) Conveying Side Traction layer Product Characteristics
Code Click Pic mm mm N/mm Material Surface Property Color Qty of Fabrics Flame Retardant Metal Detection OK Antistatic

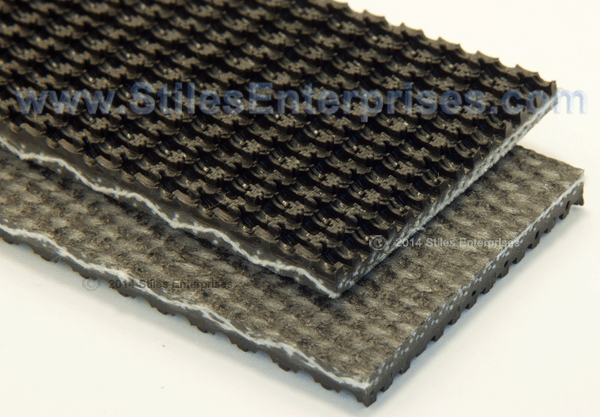

A120RT-B A120RT-B Rough Top Conveyor Belting 5.8 80 21 Polyvinylchloride (PVC) Rough top Adhesive Black 1 No No No
APH150RT APH150RT Rough Top Conveyor Belting 6.7 90 26 Polyvinylchloride (PVC) Rough top Adhesive Black 1 Yes No No
PMKLNG-BR PMAKLNG-BR Rough Top Conveyor Belting 7.1 75   Thermoplastic Alloy Rough top Adhesive Brown 1 No No No
PMKLNG-B PMKLNG-B Rough Top Conveyor Belting 7.1 50   Styrol-Butadiene-Rubber (SBR) Rough top Adhesive Black 0 No No No
R2SBRRT-B R2SBRRT-B Rough Top Conveyor Belting 5.7 50   Styrol-Butadiene-Rubber (SBR) Rough top Adhesive Black 2 No No No
R3GUMRT-T R3GUMRT-T Rough Top Conveyor Belting 7 65   Natural rubber (NR) Rough top Adhesive Tan 3 No No No

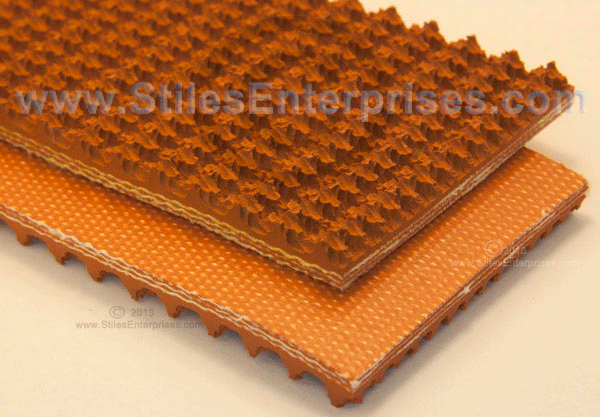

R3URT-OE R3URT-OE Rough Top Conveyor Belting 6.2 50   Acrylonitrile-Butadiene-Rubber (NBR) Rough top Adhesive Orange 3 No No No

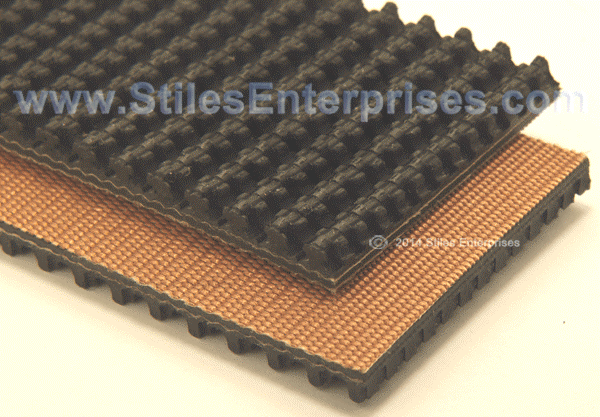

RPH2-160RTXB-FR RPH2-160RTXB-FR Rough Top Belting 6.3 75 26 Neoprene cover Rough top Super-adhesive Black 2 No No Yes
TM120RT-B TM120RT-B Rough Top Belting 5.7 70 12 Polyvinylchloride (PVC) Rough top Adhesive Black 0 No Yes No
TM447-B TM447-B Rough Top Belting 6.5 75 12 Polyvinylchloride (PVC) Rough top Adhesive Black 1 Yes Yes No
UMS130RT-B UMS130RT-B Rough Top Belting 6.3 50   Polyvinylchloride (PVC) Rough top Super-adhesive Black 1 No No Yes


For Additional Information And Delivery Information Call Our Office


.
