TC Tangential / Flat Belts

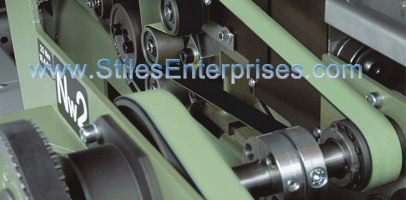

TC power transmission belts are the perfect solution for compact driving configurations, serpentine drives, and very high speeds, especially in combination with reversed bendings.
Main features:
Symmetric belt construction, suitable for double-sided power transmission • Low energy consumption • Very high speeds possible • Highly flexible • Excellent reversed bending and flex fatigue properties • Proven NBR rubber covers with high abrasion resistance • Simple and fast to join (adhesive-free Flexproof method) • Belt ends of polyester power transmission belt TC-55ER with Flexproof fingers prepared for joining.
TCF Flat Belts:
TCF flat belts were developed based on TC technology, but with one rubber (NBR) friction cover only for open drives. These unique belts are suitable for very small pulley diameters with a high number of reversed bends.
Main features:
Longitudinal grooves enable high grip • Low energy consumption • Highly flexible • Excellent reversed bending and flex fatigue properties • Proven NBR rubber covers with high abrasion resistance • Simple and fast to join (adhesive-free Flexproof method)
|

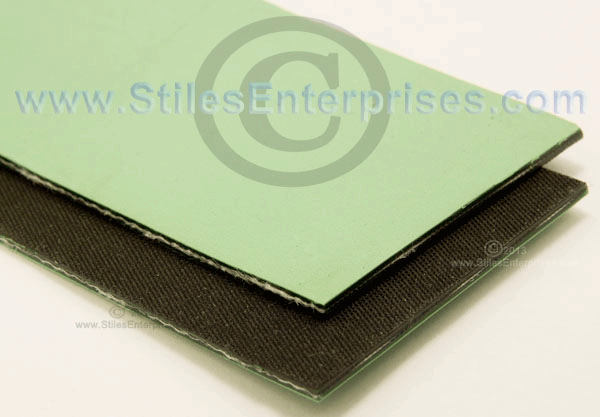

||||||||||||||||||
| Thick | Pulley Dia. (Min.) | Tensile force for 1% elongation (k1% after running in) | Nominal peripheral force per unit of width | Conveying Side | Traction layer | Running Side/Pulley Side | ||||||||||||
| code | Click Pic For Detail | mm | mm | [N/mm] | [N/mm] | Material | Property | Color | Material | Material | Property | Color | ||||||
| CM-18/30F |  |
3.2 | 15 | 35 | Acrylonitrile-Butadiene-Rubber (NBR) | Rough structure | Green | Polyester (PET) fabric | Acrylonitrile-Butadiene-Rubber (NBR) | Rough structure | Green | |||||||
| TC-20EF |  |
2 | 25 | 10 | 21 | Acrylonitrile-Butadiene-Rubber (NBR) as friction cover (pulley/cylinder side) | Rough structure | Black | Polyester (PET) fabric | Acrylonitrile-Butadiene-Rubber (NBR) as friction cover (whirl side) | Fine structure | Light green | ||||||
| TC-35ER | TC-10EF.gif) |
2.5 | 50 | 18 | 38 | Acrylonitrile-Butadiene-Rubber (NBR) as friction cover (pulley/cylinder side) | Rough structure | Black | Polyester (PET) fabric | Acrylonitrile-Butadiene-Rubber (NBR) as friction cover (whirl side) | Rough structure | Light green | ||||||
| TC-35/35ER |  |
3.5 | 70 | 18 | 38 | Acrylonitrile-Butadiene-Rubber (NBR) as friction cover (pulley/cylinder side) | Rough structure | Black | Polyester (PET) fabric | Acrylonitrile-Butadiene-Rubber (NBR) as friction cover (whirl side) | Rough structure | Light green | ||||||
