Polyamide Power Transmission Belts

Our comprehensive range of polyamide power transmission belts is well-known for its reliability and long service life in the most demanding applications and harsh conditions. Their traction layers are highly resilient and can cope with intermittent overloads, which prevents residual elongation. In addition, many of these products are known for their excellent performance as processing belts.

A Series:
The A range is specially designed for heavy open drives where a robust design with the highest endurance is required.
Main features :
• Resilient design • Shock resistant, very forgiving • Longitudinal grooves enable high grip • Operating temperatures up to 100 °C / 212 °F • Proven NBR rubber cover with high abrasion resistance

Leather Flat Belts:
Based on the proven polyamide belt A series design, with the running side covered with high-quality leather, this range incorporates all the features of top-quality belts.
Main features:
Resilient design • Shock resistant, very forgiving • Leather surface provides reliable grip and power transmission even in dirty conditions

S & SP Series:
S tangential belts have been market leaders for many years. Particularly in textile industry applications, the range offers advantages such as uniform spindle revolutions, no re tensioning requirements, and a long service life.
Main features:
Symmetric belt construction, suitable for double-sided power transmission • Resilient design • Shock resistant, very forgiving • Good reversed bending and flex fatigue properties • Proven NBR rubber covers with high abrasion resistance

Warranties Polyamide Power Transmission Belts
Call Stiles For Rubber Roller Recovering
  Thick Pulley Dia. (min.) Tensile force for 1% elongation (k1% after running in) Nominal peripheral force per unit of width  Conveying Side Traction layer Running Side/Pulley Side
code Click Pic For Detail  mm  mm  [N/mm] [N/mm] Material Property Color Material Material Property Color
A-2 A-2 Polyamide power transmission belt 2.7 60 7.5 22 Acrylonitrile-Butadiene-Rubber (NBR) Longitudinal groove structure Black Polyamide (PA) Acrylonitrile-Butadiene-Rubber (NBR) Rough structure Green
A-3 A-3 Polyamide power transmission belt 3.4 125 12 36 Acrylonitrile-Butadiene-Rubber (NBR) Longitudinal groove structure Black Polyamide (PA) Acrylonitrile-Butadiene-Rubber (NBR) Rough structure Green
A-3LL A-3LL Polyamide power transmission belt 4 125 8 22 Chrome leather Leather structure Light gray Polyamide (PA) Chrome leather Leather structure Light gray
A-3LT A-3LT Polyamide power transmission belt 3.1 125 8 22 Chrome leather Leather structure Light gray Polyamide (PA) Polyamide (PA) fabric Rough structure Green
A-4 A-4 Polyamide power transmission belt 5 300 21 63 Acrylonitrile-Butadiene-Rubber (NBR) Longitudinal groove structure Black Polyamide (PA) Acrylonitrile-Butadiene-Rubber (NBR) Rough structure Green
A-4LL A-4LL Polyamide power transmission belt 6.2 300 18 39 Chrome leather Leather structure Light gray Polyamide (PA) Chrome leather Leather structure Light gray
A-4LT A-4LT Polyamide power transmission belt 4.7 300 18 39 Chrome leather Leather structure Light gray Polyamide (PA) Polyamide (PA) fabric Rough structure Green

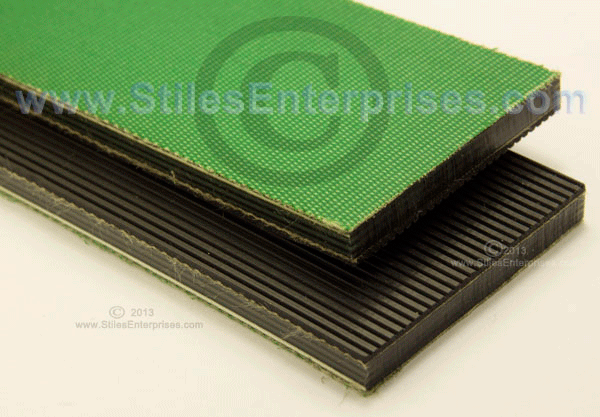

A-5 A-5 Polyamide power transmission belt 6.8 450 30 92 Acrylonitrile-Butadiene-Rubber (NBR) Longitudinal groove structure Black Polyamide (PA) Acrylonitrile-Butadiene-Rubber (NBR) Rough structure Green

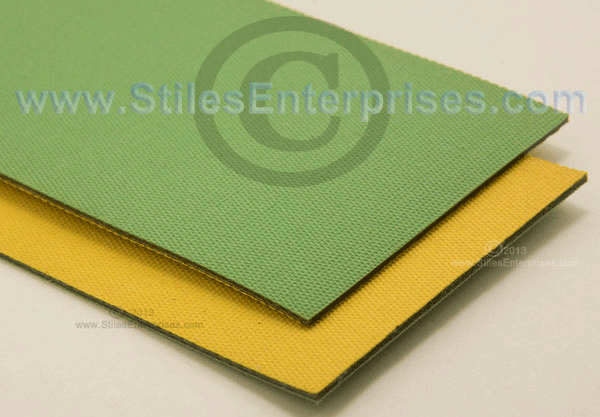

S-10/15 S-10/15 Polyamide power transmission belt 1.5 40 4.4 12 Acrylonitrile-Butadiene-Rubber (NBR) as friction cover (pulley/cylinder side) Rough structure Yellow Polyamide (PA) Acrylonitrile-Butadiene-Rubber (NBR) as friction cover (whirl side) Rough structure Light green

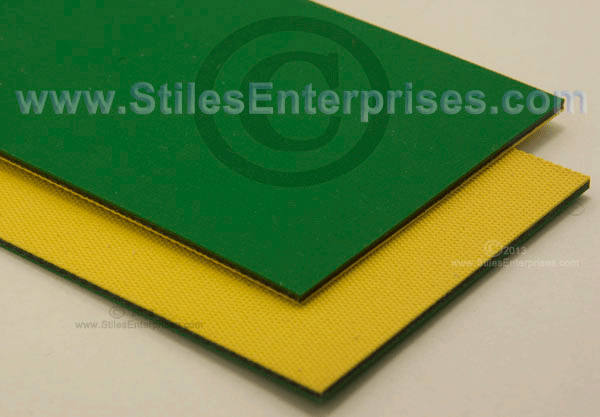

S-140H S-140H Polyamide power transmission belt 1.7 40 4.8 13 Acrylonitrile-Butadiene-Rubber (NBR) as friction cover (pulley/cylinder side) Rough structure Yellow Polyamide (PA) Acrylonitrile-Butadiene-Rubber (NBR) as friction cover (whirl side) Fine structure Green

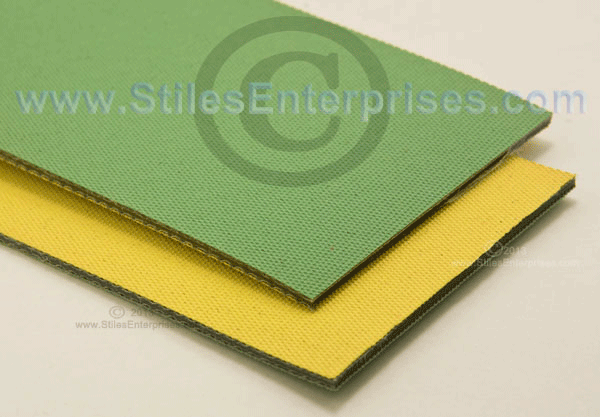

S-18/20 S-18/20 Polyamide power transmission belt 2 60 8 22 Acrylonitrile-Butadiene-Rubber (NBR) as friction cover (pulley/cylinder side) Rough structure Yellow Polyamide (PA) Acrylonitrile-Butadiene-Rubber (NBR) as friction cover (whirl side) Rough structure Light green

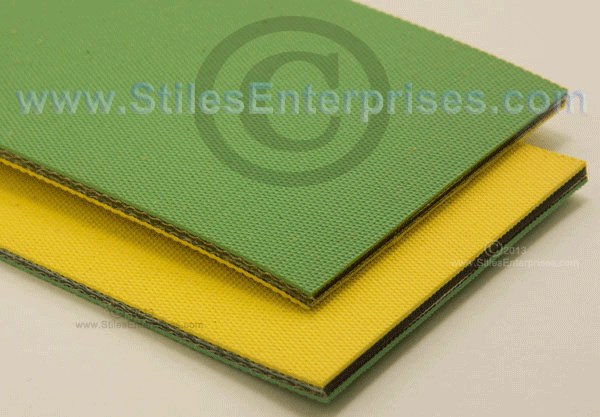

S-18/30 S-18/30 Polyamide power transmission belt 3 60 8 22 Acrylonitrile-Butadiene-Rubber (NBR) as friction cover (pulley/cylinder side) Rough structure Yellow Polyamide (PA) Acrylonitrile-Butadiene-Rubber (NBR) as friction cover (whirl side) Rough structure Light green

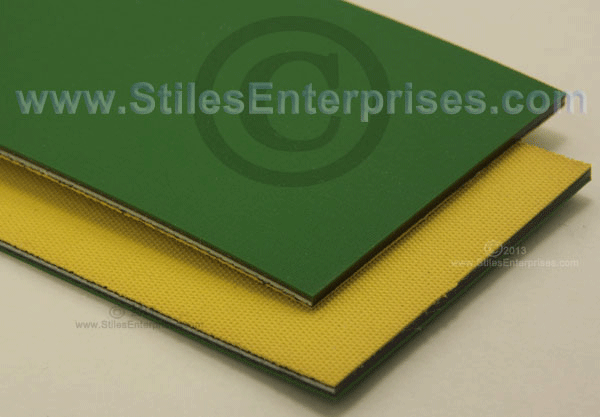

S-250H S-250H Polyamide power transmission belt 2.3 100 11 29 Acrylonitrile-Butadiene-Rubber (NBR) as friction cover (pulley/cylinder side) Rough structure Yellow Polyamide (PA) Acrylonitrile-Butadiene-Rubber (NBR) as friction cover (whirl side) Fine structure Green
S-250HR S-250HR Polyamide power transmission belt 2.6 100 11 29 Acrylonitrile-Butadiene-Rubber (NBR) as friction cover (pulley/cylinder side) Rough structure Yellow Polyamide (PA) Acrylonitrile-Butadiene-Rubber (NBR) as friction cover (whirl side) Rough structure Green
S-251H S-251H Polyamide power transmission belt 3 100 11 29 Acrylonitrile-Butadiene-Rubber (NBR) as friction cover (pulley/cylinder side) Rough structure Yellow Polyamide (PA) Acrylonitrile-Butadiene-Rubber (NBR) as friction cover (whirl side) Rough structure Green

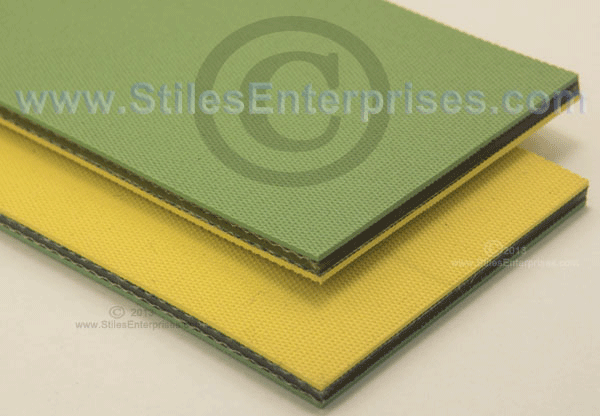

S-33/40 S-33/40 Polyamide power transmission belt 4 125 13 37 Acrylonitrile-Butadiene-Rubber (NBR) as friction cover (pulley/cylinder side) Rough structure Yellow Polyamide (PA) Acrylonitrile-Butadiene-Rubber (NBR) as friction cover (whirl side) Rough structure Light green

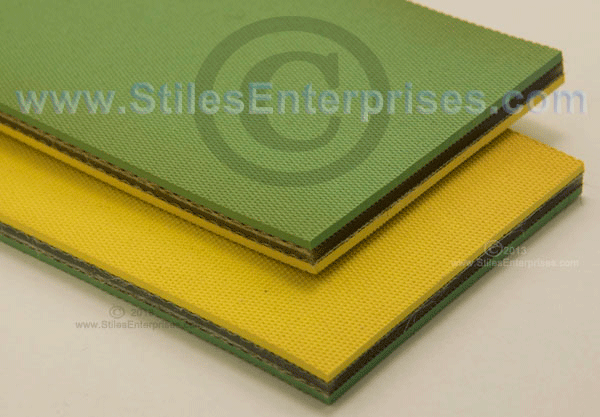

S-33/50 S-33/50 Polyamide power transmission belt 5 125 13 37 Acrylonitrile-Butadiene-Rubber (NBR) as friction cover (pulley/cylinder side) Rough structure Yellow Polyamide (PA) Acrylonitrile-Butadiene-Rubber (NBR) as friction cover (whirl side) Rough structure Light green

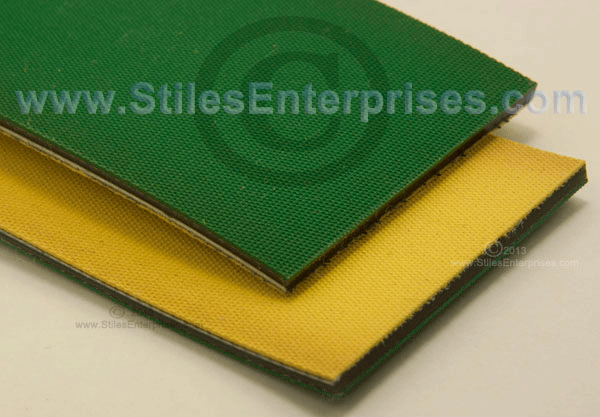

S-390H S-390H Polyamide power transmission belt 3.2 150 14 38 Acrylonitrile-Butadiene-Rubber (NBR) as friction cover (pulley/cylinder side) Rough structure Yellow Polyamide (PA) Acrylonitrile-Butadiene-Rubber (NBR) as friction cover (whirl side) Rough structure Green

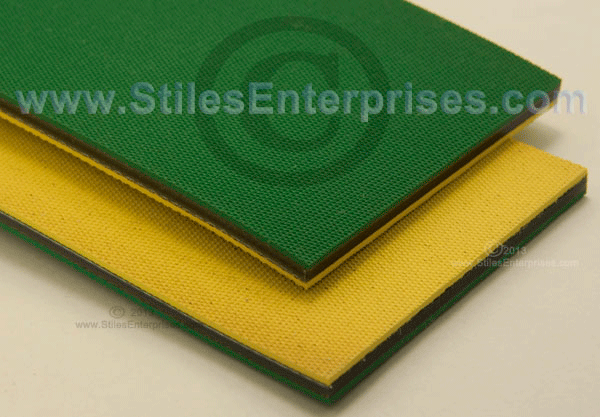

S-391H S-391H Polyamide power transmission belt 4 150 14 38 Acrylonitrile-Butadiene-Rubber (NBR) as friction cover (pulley/cylinder side) Rough structure Yellow Polyamide (PA) Acrylonitrile-Butadiene-Rubber (NBR) as friction cover (whirl side) Rough structure Green


For Additional Information And Delivery Information Call Our Office


.
