We Work With The Best Manufactures To Give You The Best Solutions

Waffle surface (inverted pyramid surface) belts can have adhesive or non-adhesive surfaces and can feature Easy cleanability; Easy release property;

Industries include:

Bakery (biscuit/cookie) • Bakery (bread) • Cheese • Chocolate/confectionery • Fish processing • Food unwrapped/open • Meat • Poultry • Vegetables • Materials Handling.

Applications Include:

Cooling (line) belts • General conveying belts • Inspection/control belts • Metering/singulation belts • Packaging belts • Processing belts • Transfer belts • Weighing belts • Decline belts • Delivery belt • Food processing/conveying belts • General conveying belts; • Incline belts • Induction belts • Power turn belts

Warranties Waffle / Inverted Pyramid Surface Conveyor Belting Literature
Call Stiles For Replacement Conveyor Chain Gripper Rubbers
  Thick Pulley Dia. (Min) Tensile force for 1% elong. (k1% static) Conveying Side (1) Tract. Layer
(2)
Pulley Side
(3)
Properties
Code Click Pic For Detail  mm Pulley mm N/mm Material Property Color Number of Fabrics Pulley Side Color Pulley Side Surf Flame Retard Spec Metal Detect OK Antistatic

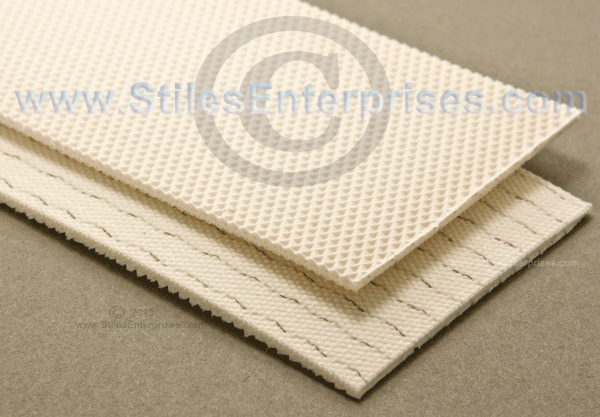

CNW-5E CNW-5E Waffle / Inverted Pyramid Flat Conveyor Belting 1.9 30 4.8 Habilene Non-adhesive White 2 White Impreg. fabric No Yes Yes

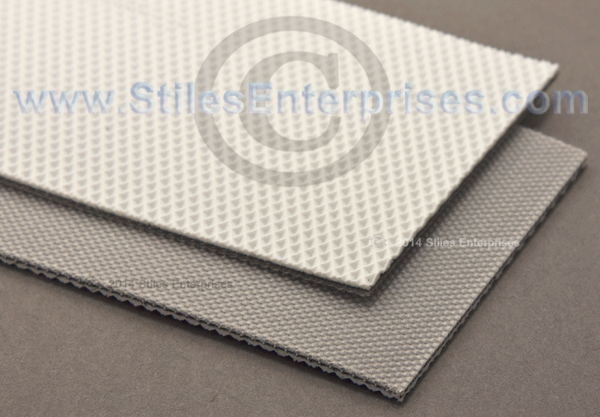

FAW-5E FAW-5E Waffle / Inverted Pyramid Flat Conveyor Belting 1.65 15 6 Thermoplastic polyurethane (TPU) Adhesive White 2 Light gray Impreg. fabric No No Yes
FAW-8EOWV FAW-8EOWV Waffle / Inverted Pyramid Flat Conveyor Belting 2.1 25 10 Polyvinylchloride (PVC) Medium-adhesive White 2 White Impreg. fabric No Yes Yes

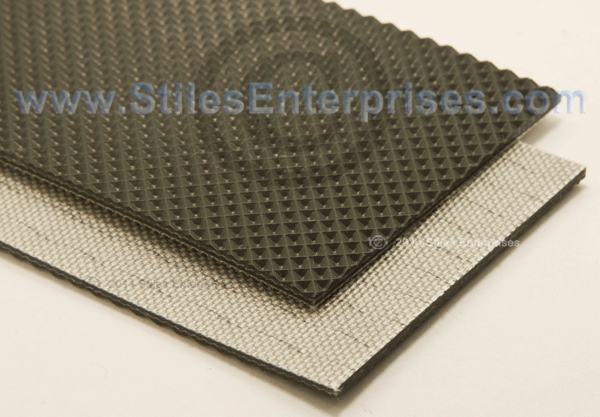

SAW-5E 07 SAW-5E 07 Waffle / Inverted Pyramid Flat Conveyor Belting 1.8 20 6 Polyvinylchloride (PVC) Adhesive Anthracite 2 Light gray Impreg. fabric Yes No Yes


For Additional Information And Delivery Information Call Our Office


.
