We Work With The Best Manufactures To Give You The Best Solutions

Quadrillé belts have a Constant and gentle positive grip and are used for Decline belts, Horizontal belts, and Inclined belts.

Industries Include:

Agri-/horticulture • Bakery (biscuit/cookie) • Chemical industry • Chocolate/confectionery • Food conveying/processing in general • Frozen food • Packaging • Distribution centers • Materials Handling • Parcel sorting:

Applications Include:

Delivery belts • Food processing/conveying belts • Weighing belts • Metering/singulation belts • Sorting belts • Transfer belts

Warranties Quadrillé (quadrangular) Surface Conveyor Belting Literature
Call Stiles For Replacement Conveyor Chain Gripper Rubbers
  Thick Pulley Dia. (Min) Tensile force for 1% elong. (k1% static) Conveying Side (1) Tract. Layer
(2)
Pulley Side
(3)
Properties
Code Click Pic For Detail  mm Pulley mm N/mm Material Property Color Number of Fabrics Pulley Side Color Pulley Side Surf Flame Retard Spec Metal Detect OK Antistatic
FAQ-5E FAQ-5E Quadrillé Surface Belting 1.4 15 6.5 Thermoplastic polyurethane (TPU) Adhesive White 2 Light Gray Impreg. Fabric No No Yes

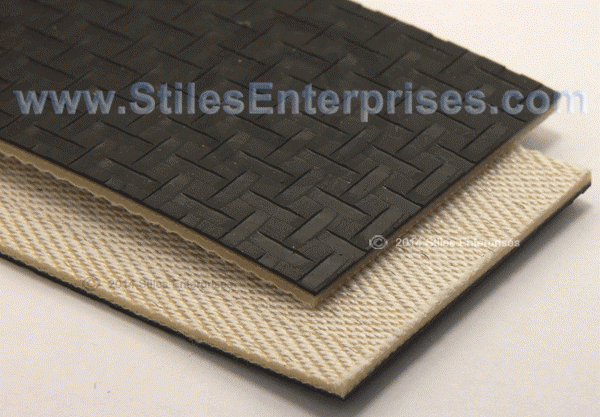

NAQ-8ELBV NAQ-8ELBV Quadrillé Surface Belting 2.4   11 Polyvinylchloride (PVC) Adhesive Black 2 White Fabric No Yes Yes

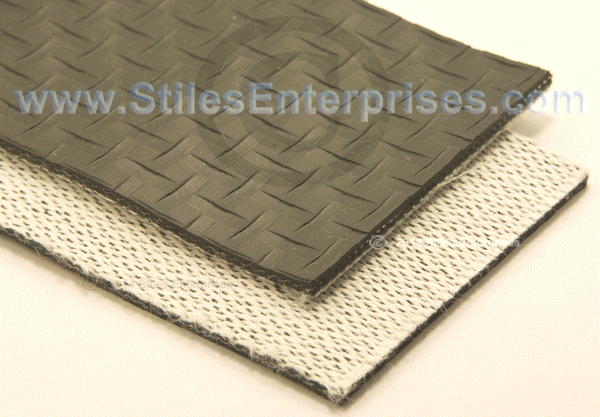

SAQ-8E 07 SAQ-8E 07 Quadrillé Surface Belting 2.1 32 9 Polyvinylchloride (PVC) Adhesive Anthracite 2 Off-white Fabric No Yes Yes


For Additional Information And Delivery Information Call Our Office


.
