We Work With The Best Manufactures To Give You The Best Solutions

Longitudinal Grooves provide absorption of shock loads; wear resistant edges; excellent tracking characteristics; high coefficient of friction surface; high grip surface; Impact resistance; and are quiet running.

Industries Include:

Materials Handling • Packaging • Paper manufacturing and processing • Wood processing • Airports • Package handling • Parcel distribution/Overnight carriers • Parcel sorting


Acceleration belts • Decline belts • General conveying belts • Incline belts • Paper handling belts • Metering/singulation belts • Induction belts

Warranties Longitudinal grooved Conveyor Belting Literature
Call Stiles For Replacement Conveyor Chain Gripper Rubbers
  Thick Pulley Dia. (Min) Tensile force for 1% elong. (k1% static) Conveying Side (1) Tract. Layer
Pulley Side
Code Click Pic For Detail  mm Pulley mm N/mm Material Property Color Number of Fabrics Pulley Side Color Pulley Side Surf Flame Retard Spec Metal Detect OK Antistatic
HAL-12E HAL-12E APH150LR Grooved Conveyor Belting 2.5 48 21 Rubber (EPDM) Super-adhesive Green 2 Black Impregnated fabric No No Yes

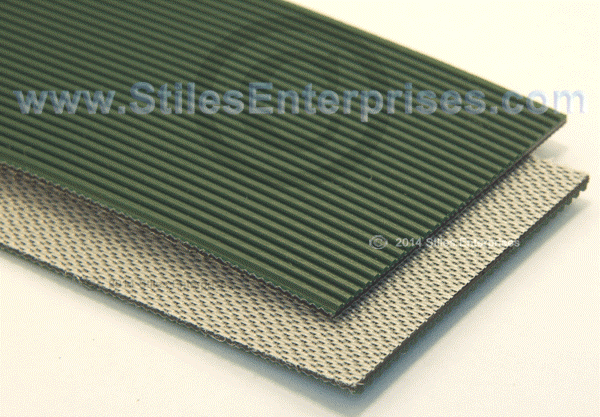

HSL-8E HSL-8E APH150LR Grooved Conveyor Belting 1.9 20 8 Thermoplastic polyurethane (TPU) Super-adhesive Dark green 2 Gray Impregnated fabricImpregnated fabric Yes No Yes

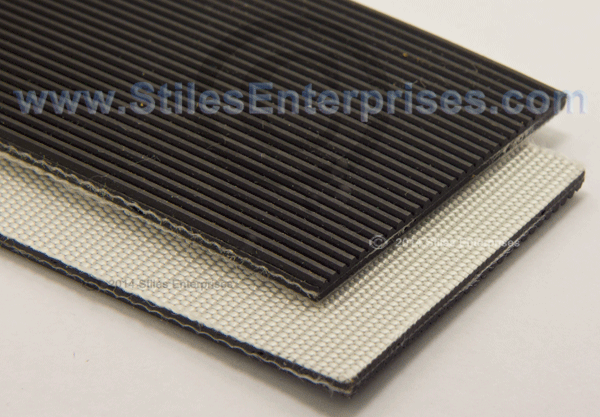

NAL-12ELBV NAL-12ELBV APH150LR Grooved Conveyor Belting 2.8 50 12 Polyvinylchloride (PVC) Adhesive Black 2 Light green Fabric No Yes No
NSL-10ELBV 11 NSL-10ESBV APH150LR Grooved Conveyor Belting 2.3 32 11 Polyvinylchloride (PVC) Super-adhesive Black 2 White Fabric Yes Yes Yes
NSL-10ESBV NSL-10ESBV APH150LR Grooved Conveyor Belting 2.3 40 10 Polyvinylchloride (PVC) Super-adhesive Black 2 Gray Fabric Yes No Yes

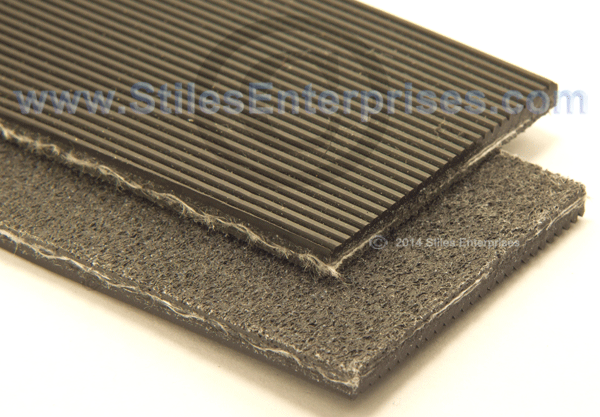

TM120LR-B TM120LR-B APH150LR Grooved Conveyor Belting 3.9 40 12 Polyvinylchloride (PVC) Adhesive Black 0 Black Fabric Yes Yes No

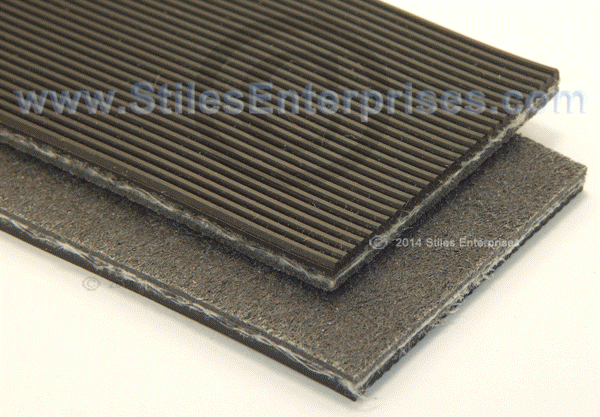

TMIPH135LR TMIPH135LR APH150LR Grooved Conveyor Belting 4.4 75 16 Polyvinylchloride (PVC) Super-adhesive Black 1 Black Impregnated fleeceImpregnated fleece Yes Yes No
UMS130LR-B UMS130R-B APH150LR Grooved Conveyor Belting 4.3 50   Polyvinylchloride (PVC) Super-adhesive Black 1 Black Buffed finishBuffed finish No No Yes
UMSPH150LR UMSPH150LR  Grooved Conveyor Belting 5.2 90   Polyvinylchloride (PVC) Super-adhesive Black 1 Black Impregnated fleece No No Yes

For Additional Information And Delivery Information Call Our Office
