We Work With The Best Manufactures To Give You The Best Solutions

Mini Rough Top Grip Surface provides high grip used in decline, horizontal, and incline conveying.

Industries Include:

Distribution centers • General applications • Materials handling • Parcel sorting • Packaging • Materials handling • Paper converting • Paper manufacturing and processing • Wood applications.

Applications:

Decline belts • Discharging belts • General conveying belts • Infeed belts • Inserting belt • Inspection/control belts • Line belts • Acceleration belts • Gapping belts • Metering/singulation belts

Warranties Grip Top ♦ Mini Rough Top Belt Literature
Call Stiles For Replacement Conveyor Chain Gripper Rubbers
  Thick Pulley Dia. (Min) Tensile force for 1% elong. (k1% static) Conveying Side (1) Tract. Layer
(2)
Pulley Side
(3)
Properties
Code Click Pic For Detail  mm Pulley mm N/mm Material Property Color Number of Fabrics Pulley Side Color Pulley Side Surf Flame Retard Spec Metal Detect OK Antistatic

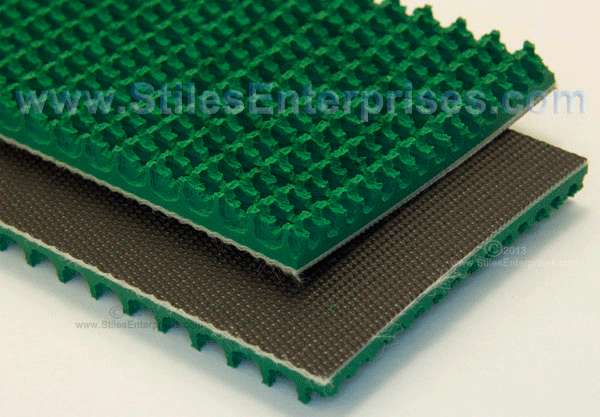

HAG-12E HAG-12E Mini Rough Top Belting 5.8 80 19 Acrylonitrile-Butadiene-Rubber (NBR) Adhesive Green 2 Black Impreg. Fabric No No Yes
SAG-12E SAG-12E Mini Rough Top Belting 5.2 60 17 Rubber (EPDM) Adhesive Anthracite 2 Off-white Fabric Yes No Yes
SAG-8E 07 SAG-8E 07 Mini Rough Top Belting 4 32 9 Polyvinylchloride (PVC) Adhesive Anthracite 2 Off-white Fabric Yes No Yes


For Additional Information And Delivery Information Call Our Office


.
