Thermoplastic polyurethane (TPU) Food Belting

Features:

+ High flexibility even at low temperatures
+ Very good abrasion resistance
+ Good resistance to fats and oils
+ Odor-free (no migration of plasticizers)
- Not resistant to hot water (steam) hydrolysis*
- Not resistant to chlorine and to many organic solvents
- Relatively expensive material



Warranties TPU Food Conveyor Belting Literature
Call Stiles For Replacement Conveyor Chain Gripper Rubbers
  Thick Pulley Dia. (Min) Tensile force for 1% elong. (k1% static) Conveying Side (1) Tract. Layer
(2)
Pulley Side
(3)
Properties
Code Click Pic For Detail  mm mm N/mm Material Surface Property Color Qty of Fabrics Color Anti Static Nose Bar Suitable
F-3 EXWT 09 0.9 20 5 TPU Smooth Medium-adhesive White 1 White Yes Yes
F-5 EIWT F-5EIWT TPU Food Conveyor Belt 1.1 15 8.5 Polyester (PET) fabric Impreg. fabric Non-adhesive White 2 White Yes Yes
F-5 EXCT F-5 EXCT TPU Food Conveyor Belt 1.4 15 9 TPU Smooth Medium-adhesive Cobalt blue 2 White Yes Yes
FAB -12E FAB-12E TPU Food Conveyor Belt 2.4 48 17 (TPU) Smooth Adhesive White 2 Light Gray Yes No
FAB-2E FAB-2E TPU Food Conveyor Belt 0.7 15 3.2 TPU Smooth Adhesive White 1 Light Gray Yes Yes
FAB-2 E+H15 FAB-2 E+H15 TPU Food Conveyor Belt 0.7 15 3.6 TPU Smooth Adhesive White 1 Light Blue Yes Yes
FAB -5E FAB-5E TPU Food Conveyor Belt 1.3 15 6 TPU Smooth Adhesive White 2 Light Gray Yes Yes
FAB -5EB 1.5 15 6 TPU Smooth Medium-adhesive White 2 Light Gray Yes Yes
FAB -5 EIWH FAB -5EIWH TPU Food Conveyor Belt 1.3 15 6 TPU Smooth Adhesive White 2 Gray Yes Yes
FAB -5E +H15 FAB -5E_H15 TPU Food Conveyor Belt 1.3 15 6.5 TPU Smooth Adhesive White 2 Light Blue Yes Yes
FAB -8E FAB-8E TPU Food Conveyor Belt 1.6 20 7.5 TPU Smooth Adhesive White 2 Light Gray Yes No
FAB -8E +H15 FAB -8E +H15 TPU Food Conveyor Belt 1.6 20 8.5 TPU Smooth Adhesive White 2 Light Blue Yes No
FAF -12E FAF-12E TPU Food Conveyor Belt 4.5 48 17 TPU Fish / herringbone structure Adhesive White 2 Light Gray Yes No
FAQ -5E FAQ -5E TPU Food Conveyor Belt 1.4 15 6.5 TPU Quadrillé quadrangular structure Adhesive White 2 Light Gray Yes Yes
FAW -5E FAW-5E TPU Food Conveyor Belt 1.65 15 6 TPU Waffle structure Adhesive White 2 Light Gray Yes Yes
FMB -5EQ FMB-5EQ TPU Food Conveyor Belt 1.6 15 5.5 TPU Smooth Medium-adhesive White 2 White No Yes
FMD -2EIH FMD-2EIH TPU Food Conveyor Belt 0.65 15 3 TPU Diagonal rhomboid positive structure Medium-adhesive Amber 1 Amber Yes Yes
FNB -12E FNB-12E TPU Food Conveyor Belt 2.4 48 17 TPU Smooth Non-adhesive White 2 Light Gray Yes No
FNB -12 EVCQ FNB-12EVCQ TPU Food Conveyor Belt 1.9 20 12 TPU Smooth Non-adhesive Cobalt blue 2 Cobalt Blue No No
FNB -5E FNB-5E TPU Food Conveyor Belt 1.3 15 6.5 TPU Smooth Non-adhesive White 2 Light Gray Yes Yes
FNB -5EIC FNB-5EIC TPU Food Conveyor Belt 1.3 15 6 TPU Smooth Non-adhesive Cobalt blue 2 Cobalt Blue Yes Yes
FNB -5EQ FNB-5EQ TPU Food Conveyor Belt 1.3 15 5 TPU Smooth Non-adhesive White 2 White No Yes
FNB -5E +H15 FNB -5E +H15 TPU Food Conveyor Belt 1.3 15 7 TPU Smooth Non-adhesive White 2 Light Blue Yes Yes
FNB -6EVWQ +H15 FNB -6EVWQ +H15 TPU Food Conveyor Belt 1.55 30 5.5 TPU Smooth Non-adhesive White 2 White Yes No
FNB -8E FNB -8E TPU Food Conveyor Belt 1.6 20 7.5 TPU Smooth Non-adhesive White 2 Light Gray Yes No
FNB -8E +H15 FNB -8E +H15 TPU Food Conveyor Belt 1.6 20 8 TPU Smooth Non-adhesive White 2 Light Blue Yes No
FNI -12E FNI-12E TPU Food Conveyor Belt 1.6 50 18 Polyester (PET) fabric Impreg. fabric Non-adhesive Off-white 2 Off-white Yes No
FNI -2E FNI -2E TPU Food Conveyor Belt 0.35 15 4.4 TPU Impreg. fabric Non-adhesive Transparent 1 Transparent No Yes
FNI -5E FNI -5E TPU Food Conveyor Belt 0.9 15 6.5 Polyester (PET) fabric Impreg. fabric Non-adhesive White 2 White Yes Yes
FNI -5EI FNI-5EI TPU Food Conveyor Belt 1.4 15 2 Polyester (PET) fabric Impreg. fabric Non-adhesive White 2 White No Yes
FNI -6EIC FNI-6EIC TPU Food Conveyor Belt 1.1 20 6 Polyester (PET) fabric Impreg. fabric Non-adhesive Blue 2 Blue Yes Yes
FNT -5E FNT-5E TPU Food Conveyor Belt 1.7 15 6.5 Polyester (PET) fabric Fabric Non-adhesive Off-white 1 Off-White No Yes

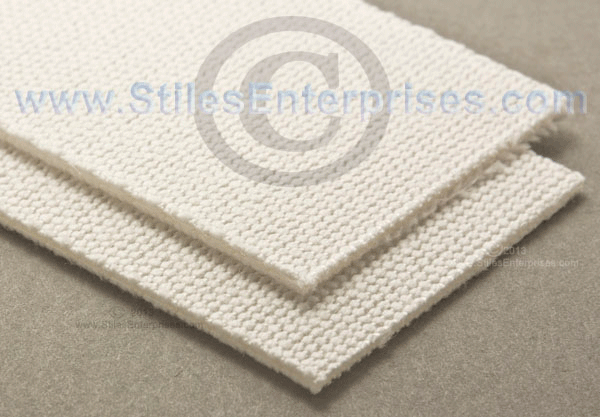

FNT -5EC FNT-5EC TPU Food Conveyor Belt 1.8 20 5 Polyester (PET)/Cotton (CO) fabric Fabric Non-adhesive White 2 White No Yes

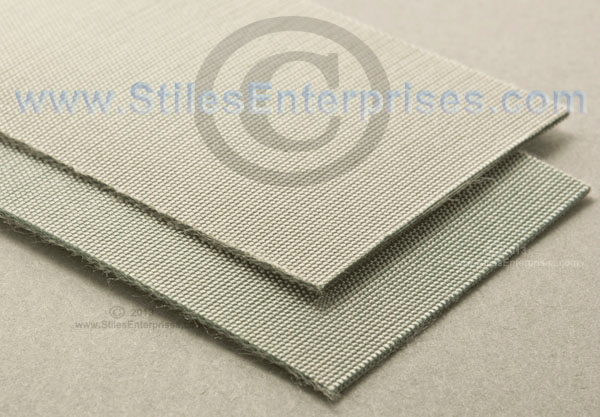

FNT -5P FNT-5P TPU Food Conveyor Belt 1.05 20 3.4 Polyamide (PA) Fabric Non-adhesive Light gray 3 Light gray No No
FNT -5PC FNT-5PC TPU Food Conveyor Belt 1.3 15 3.4 Polyamide (PA)/Cotton (CO) fabric Fabric Non-adhesive White 2 White No Yes
