We Work With The Best Manufactures To Give You The Best Solutions

Stiles Distributes Urethane Belting from Several Reliable Sources In Order To Make Sure That Whatever Your Requirement, We Can Help.

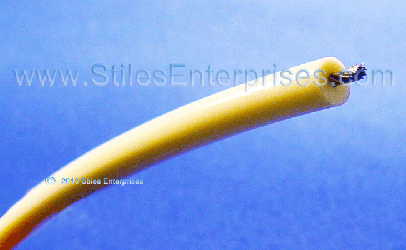

Polyester Can Cable with Steel Core

Can Cable is manufactured from polyester resin, thermally fused to a durable core to provide consistent reinforcement the entire length of the cable.

Available with polyester cord or extra strength steel cord.

Advantages

  • Splicing Process Allows Larger / Heavier Cans At Increased Speeds
  • Thermoplastic Cover Is Moisture Resistant
  • Impervious To Acidic Atmosphere That Can Rot Nylon And Rust Steel Cables (Dairy Applications)
  • Stretch Resistant: Prevents "Cable Surge"
  • Abrasion Resistant: Resists Raw Edge Can Damage
  • Lighter Than Steel Cable: Eases Handling And Conserve Operating Energy
  • Cuts Noise Compared To Steel Cable
  • Available In Lengths Of Up To 1000 Feet
  • Available Splicing Tool Facilitates Splices Within 15 Minutes

Polyester Cables without Steel Cords are easier to splice to length, but sacrifice the strength of those with steel cord.

Contact Stiles about splicing equipment and procedure for joining Can Cables . Belts joined with metal reinforcement sleeves yield highest strength.

If You Do Not See What You Need, Please Let Us Know.

  Polyester Can Cables
Call Stiles For Replacement Conveyor Chain Gripper Rubbers
Stiles Number for Open Ended Lengths Cross Section Picture Inch Diameter Elastomer Strength Cord Color Minimum Pulley (Inches) Temperature Range Carrying Load @1% Installed Tension  Carrying Load @2% Installed Tension  Carrying Load @3% Installed Tension  Maximum Length (Feet) Hardness
QK-15451-BRZ Can Cable Ivory 3/8" Polyester Polyester Ivory 7.5* -30° to 225°F     (-34° to 107°C) 180# 368# 528# 1000 XX
QK-15451-BSA Can Cable Steel Cord 3/8" Polyester Steel Ivory 15 -30° to 225°F(-34° to 107°C) 1000# 1000# 1000# 1000 XX
*If Using Reinforced Sleeve To Make Endless, Increase Minimum Pulley Size To 11.5".
