Aramide Power Transmission Belt
TF tangential and flat belts

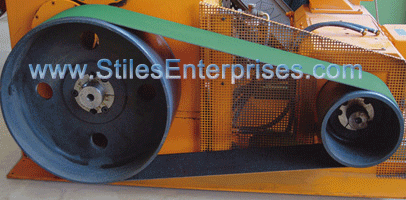

TF range belts are the best choice for very long belts in situations where high accuracy and consistent belt speeds are required, e.g. in applications in the textile industry and the post sector, e.g. for letter sorting. The belts' advantages include a high modulus of elasticity that results in very high spindle revolution uniformity, no retensioning, low energy consumption, and a long service life.


Main features:
  • Symmetric belt construction, suitable for double-sided power transmission
  • Low energy consumption
  • Highly flexible
  • Excellent reversed bending and flex fatigue properties
  • Very high accuracy of rpm thanks to a high modulus of elasticity
  • Very short take-up
  • Extremely compact driving configurations (serpentine drive)
  • Suitable for high speeds
  • Proven NBR rubber covers with high abrasion resistance
  • Simple and fast to join (adhesive-free Flexproof method)

Warranties Aramide Power Transmission Belts
Call Stiles For Rubber Roller Recovering
  Thick Pulley Dia. (min.) Tensile force for 1% elongation (k1% after running in) Nominal peripheral force per unit of width  Conveying Side (1) Traction layer (2) Running Side/Pulley Side (3)
code Click Pic For Detail  mm  mm  [N/mm] [N/mm] Material Property Color Material Material Property Color

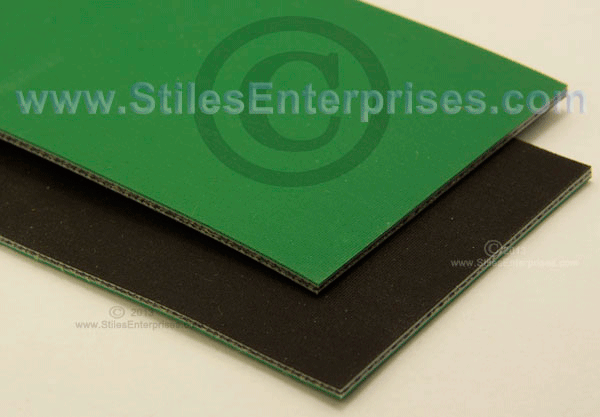

TF-10 TF-10 Aramide Power Transmission Belt 1.7 25 10 10 Acrylonitrile-Butadiene-Rubber (NBR) Fine textile structure Black Aramide fabric Acrylonitrile-Butadiene-Rubber (NBR) as friction cover (whirl side) Fine textile structure Green

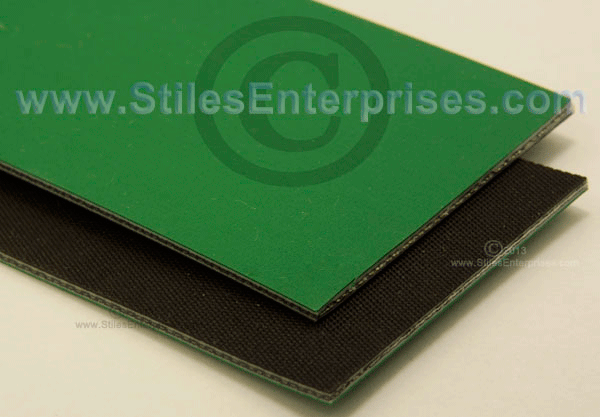

TF-15 TF-15 Aramide Power Transmission Belt 2 30 15 15 Acrylonitrile-Butadiene-Rubber (NBR) Rough structure Black Aramide fabric Acrylonitrile-Butadiene-Rubber (NBR) Fine structure Green
TF-22 TF-22 Aramide Power Transmission Belt 2.4 60 22 22 Acrylonitrile-Butadiene-Rubber (NBR) Rough structure Black Aramide fabric Acrylonitrile-Butadiene-Rubber (NBR) Rough structure Green
TF-33 TF-33 Aramide Power Transmission Belt 3 100 33 33 Acrylonitrile-Butadiene-Rubber (NBR) Rough structure Black Aramide fabric Acrylonitrile-Butadiene-Rubber (NBR) Rough structure Green
TF-50 TF-50 Aramide Power Transmission Belt 3.9 125 50 50 Acrylonitrile-Butadiene-Rubber (NBR) Rough structure Black Aramide fabric Acrylonitrile-Butadiene-Rubber (NBR) Rough structure Green
TF-75T TF-75 Aramide Power Transmission BeltT 4.4   75 75 Acrylonitrile-Butadiene-Rubber (NBR) Rough structure Black Aramide fabric Polyester (PET)/Cotton (CO) fabric as friction cover (reverse side) Fabric Green


For Additional Information And Delivery Information Call Our Office


.
