Machine Tape Belting
Machine Tapes
:

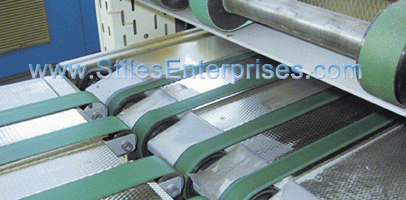

Machine tapes are central to manufacturing operations. They convey, speed up, slow down, position and, when required, fold the paper material processed.

Habasit's comprehensive range of Hamid, polyamide and polyurethane machine tapes are manufactured with abrasion-resistant NBR covers or other application-oriented surface materials. They provide the industry with effective and comprehensive belting solutions that are extremely reliable, have constant grip, and offer long service lives.

There are three machine tape ranges, using traction layers based on different materials.

Hamid Machine Tapes use the Flexproof and/or Quickmelt adhesive-free joining methods.

Polyamide Machine Tapes require the adhesive-based Thermofix joining method

Polyurethane Machine Tapes need the Flexproof and/or Quickmelt adhesive-free joining methods.
.
Warranties Machine Tapes / Belts Literature
Call Stiles For Replacement Conveyor Chain Gripper Rubbers
Group Belt Installation And Maintenance Guide Description Properties
Hamid Machine Tapes Hamid Machine Tapes
  • joined quickly by fusing the ends together without the use of adhesives
  • uniform flexibility over the whole length.
  • provides significant cost savings in terms of maintenance and reduced downtimes
  • Elastic Hamid machine tapes are also available.
  • Simple and fast adhesive-free joining method
  • Uniform longitudinal flexibility (thanks to the adhesive-free joint)
  • Low energy consumption, due to high longitudinal flexibility
  • Excellent reversed bending and flex fatigue properties
  • Copes with small pulley diameters
  • Good dimensional stability, low sensitivity to humidity
  • High abrasion resistance
  • Application-oriented surface properties, gentle treatment of transported goods
  • Elastic types are available
Polyamide Machine Tapes Polyamide Machine Tapes
  • The traction layer of these machine tapes is highly resilient and can cope with intermittent overloads
  • Resistant To residual elongation. This makes retensioning unnecessary
  • avoids costly and time-consuming machine downtimes.
  • Good dimensional stability
  • Can cope with intermittent overloads, very forgiving
  • Very good reversed bending and flex fatigue properties
  • High abrasion resistance
  • Application-oriented surface properties, gentle treatment of transported goods
polyurethane Machine Tapes Polyurethane Machine Tapes
  • joined quickly by fusing the ends together without using adhesives (using the Flexproof or Quickmelt joining methods)
  • elastic TPU foil traction layer permits quick installation with short machine downtimes.
  • These machine tapes do not require tensioning devices
  • Despite its elasticity, the foil remains dimensionally stable after running-in.
  • Simple and fast joining method
  • Uniform longitudinal flexibility thanks to the knock-free joint
  • High abrasion resistance
  • Constant and gentle grip structure
  • Gentle treatment of transported goods
  • Elastic types are available


For Additional Information And Delivery Information Call Our Office
