PVC General Duty Conveyor Belting

Features:

+  Good chemical resistance (including to chlorine)
+  Hydrolysis-resistant (resistant to hot water and steam)
+  UV radiation-resistant
+  Flame-retardant and antistatic versions available
+  Food-compliant versions available
+  Reasonable price
-  Low flexibility at low temperatures
-  Limited abrasion resistance
-  Limited resistance to solvents, oil and grease
-  Migration of plasticizers (except food-grade PVC)
-  Problematic disposal (burning PVC generates hydrochloric acid)


>
Warranties General Purpose PVC Conveyor Belts: Smooth • Matt • Fabric Finish Literature
Call Stiles For Resurfaced Rubber Rollers
Thick Pulley Diameter Minimum Tensile force for 1% elong. (k1% static) Per Width Unit Conveying Side (1) Traction Layer (2)
Code Click Pic For Detail [mm] Without counter flection [mm] With counter flection [mm] Without or with counter flection [mm] N/mm Material Surface Property Color Number Of Fabrics Anti-Static
NAB- 7EEDV NAB-7EEDV 2 25 40   12 PVC Smooth Adhesive Dark Green 2 Yes
NAB- 8EEDV 11 NAB-8EEDV 2 32 32   9 PVC Smooth Adhesive Dark Green 2 Yes
NAB-10ELDV 11 NAB-10ELDV_11 2     40 7 PVC Smooth Adhesive Dark Green 2 Yes
NAB-12EEDV 11 NAB-12EEDV_11 2.8 50 60   8 PVC Smooth Adhesive Dark Green 2 Yes
NAB-15EVDV NAB-15EVDV 3     48 8 PVC Smooth Adhesive Dark Green 2 No
NHB- 5EKBV NHB-5EKBV 1 24 30   3.2 PVC Matt Non-Adhesive Black 1 Yes
NHB-10EKBV 11 NHB-10EKBV_11 2.1     32 7 PVC Matt Non-Adhesive Black 2 Yes
NHM- 8EKDV 11 NHM-8EKDV_11 1.8   25   5.5 PVC Super Matt Finish Non-Adhesive Dark Green 2 Yes

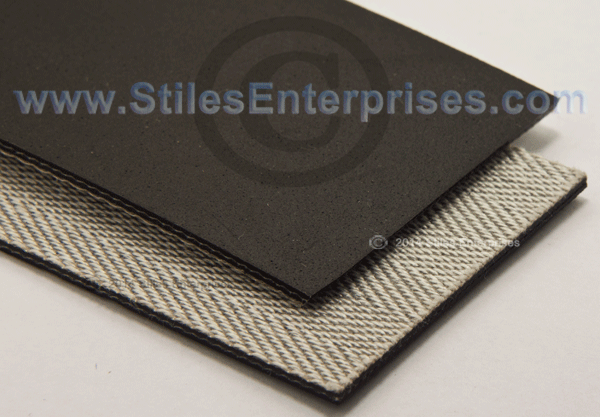

NHM-10EKBV 11 NHM-10EKBV_11 2.1   40   7 PVC Super Matt Finish Non-Adhesive Black 2 Yes
NHU- 8EETV 11 NHU-8EETV_11 2 50 60   6 PVC Smooth Non-Adhesive Transparent 2 Yes

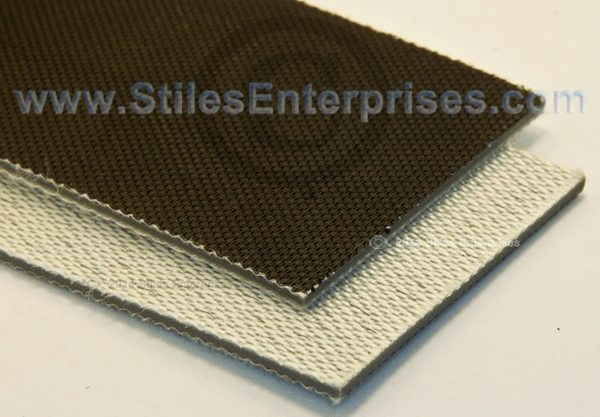

NNT-10ENBU NNT-10ENBU 2.1 30 40   6 PET Fabric Impreg. With PVC Impreg. Fabric Non-Adhesive Black 2 Yes
NNT-20ECDV NNT-20ECDV 3.5     120 12 PET Fabric Impreg. With PVC Impreg. Fabric Non-Adhesive Dark Green 3 Yes

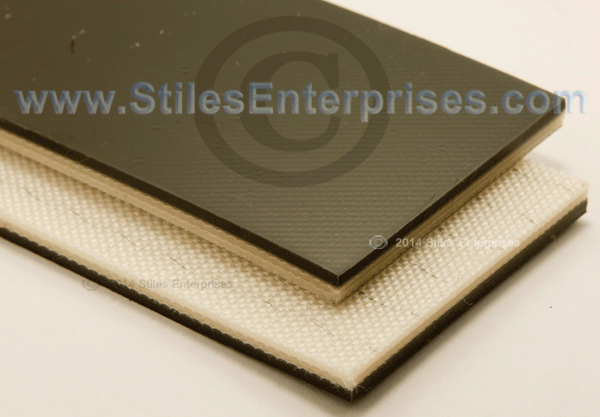

NSB-12EEAV 11 NSB-12EEAV 4.8 80 100   9 PVC Smooth Adhesive Anthracite 3 Yes


For Additional Information And Delivery Information Call Our Office


.
